Product Features
✅ All-in-One E1 & Data Line Tester

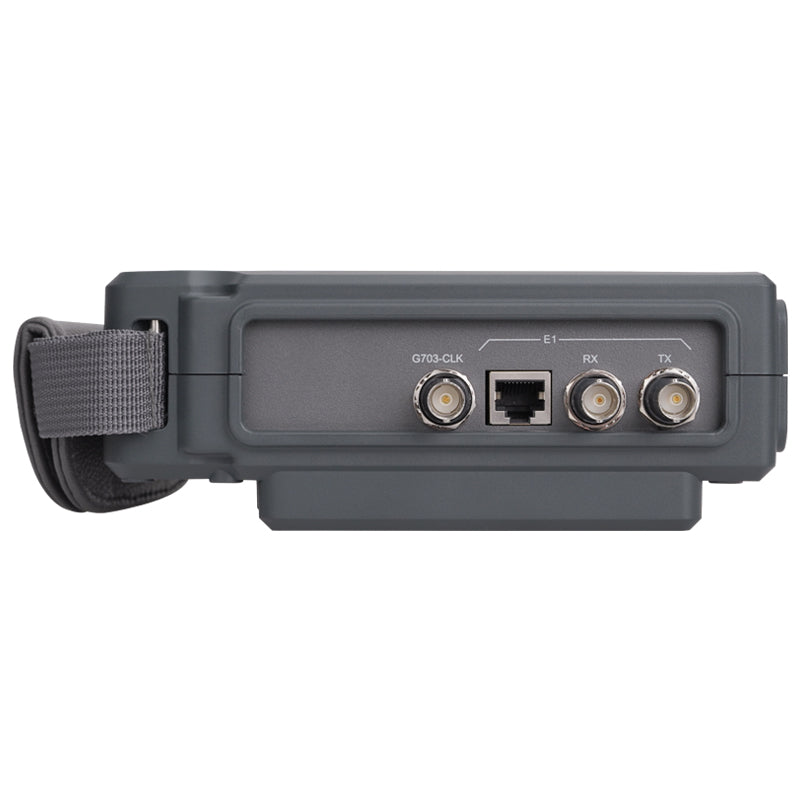

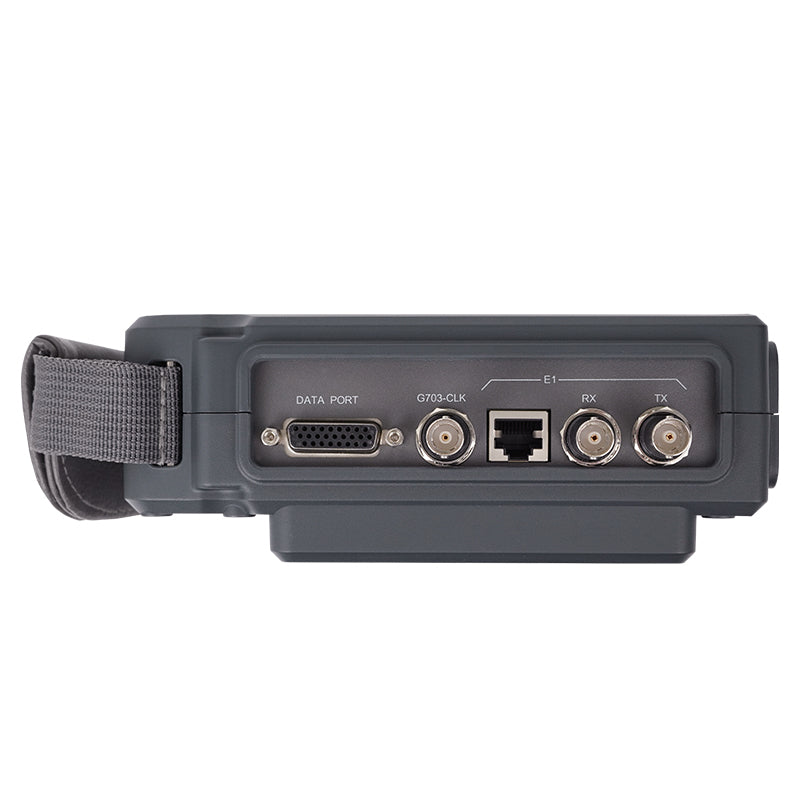

The T1000M supports both E1/G.703 line testing and data port error analysis (V.35, RS232, RS530, X.21, etc.). It performs frame, pattern, CRC, and BPV analysis, making it ideal for field maintenance of telecom and data communication networks. Users can conduct offline (BERT) and online monitoring, ensuring comprehensive line quality assessment.
✅ Full-Color Graphical Interface with Intuitive Operation

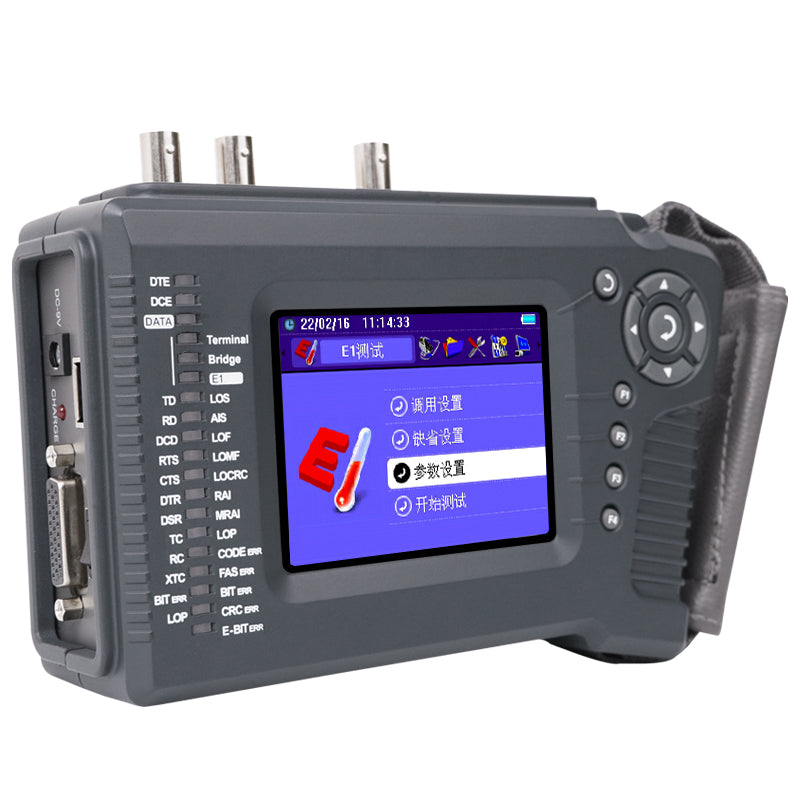

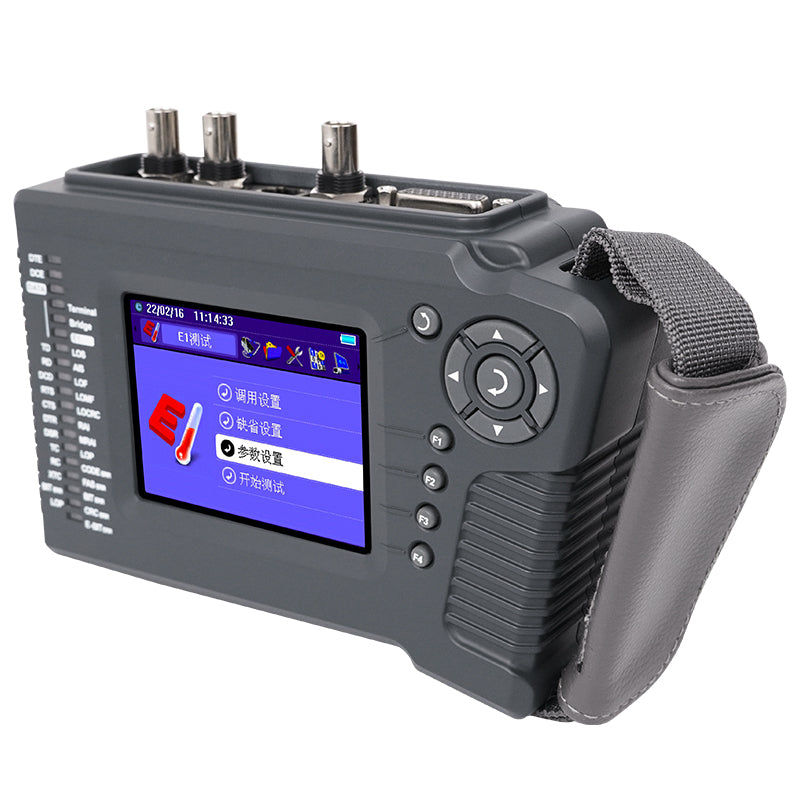

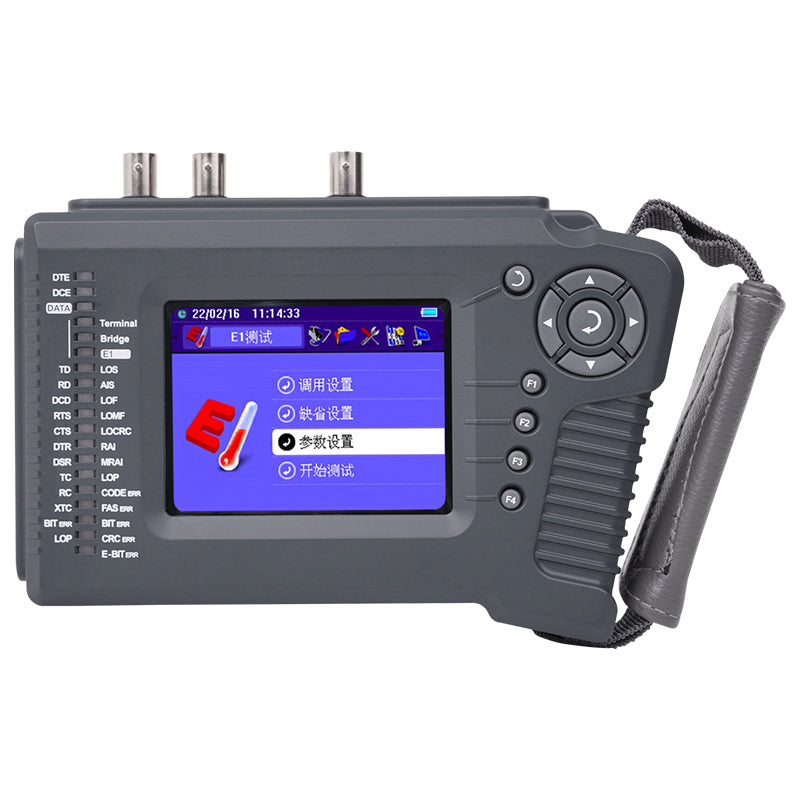

Equipped with a TFT true-color display and a fully Chinese graphical interface, the T1000M allows for easy navigation and real-time visualization of test results. Features like alarm graphs, error histograms, and configurable time slots provide clear, actionable insights for technicians.
✅ Compliant with International Standards
The analyzer performs error performance analysis according to G.821, G.826, and M.2100 standards. It also supports E1 frequency offset testing, loop delay measurement, and overhead analysis (Sa bits, CAS signaling), ensuring professional-grade compliance testing.
✅ Onboard Storage & Multiple Output Options

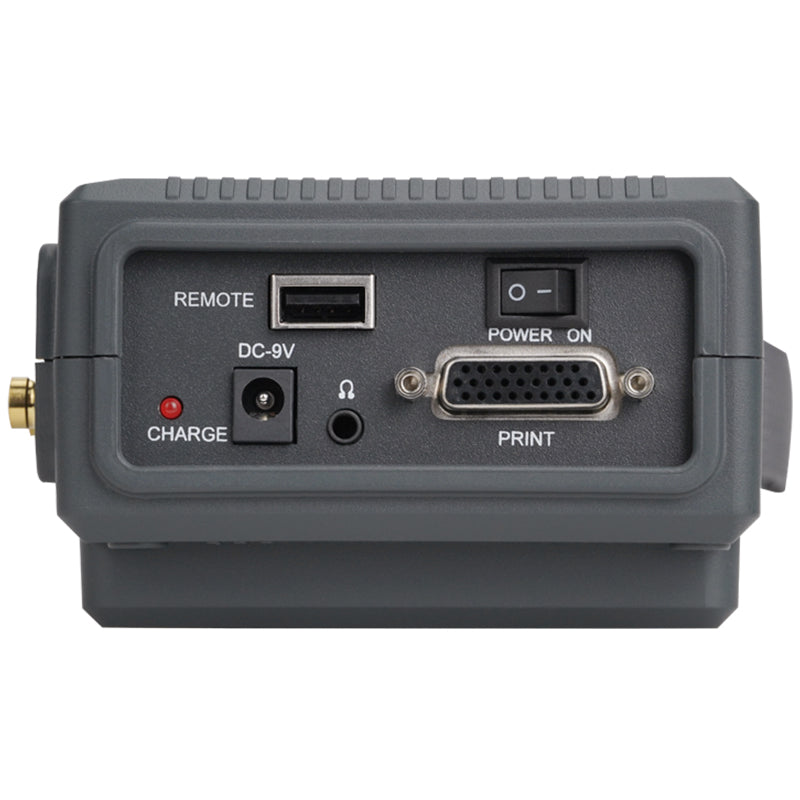

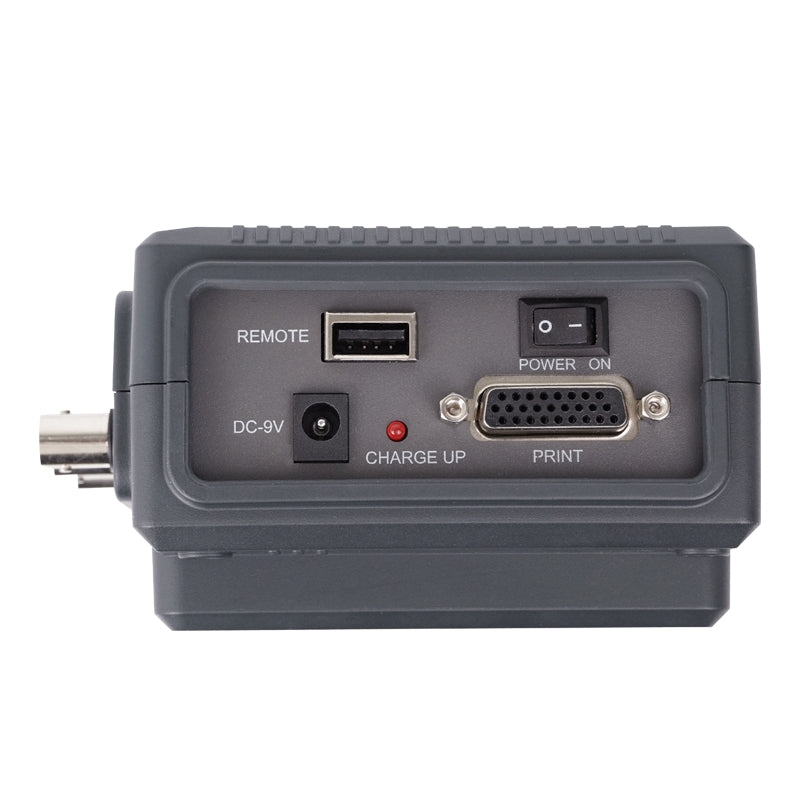

Save up to 100 configuration and test result files in text format. Results can be viewed on-screen, stored internally, or printed via the parallel printer port. This flexibility supports reporting, documentation, and repeated test scenarios.
✅ Portable & Field-Ready Design
Built with a large-capacity rechargeable lithium battery, the T1000M offers up to 4 hours of continuous operation. Its compact, handheld form factor (0.8 kg) and rugged design make it perfect for field use, while the included carrying case enhances portability.
Spec Sheet
| Model | T1000M/C E1 Data Error Rate Tester |
T1000M/E 2M Bit Error Rate Tester |
T1000M/T E1 Transmission Analyzer |
|---|---|---|---|
| Description | E1 + Data | E1 | E1 + Jitter + G.703-64K |
| Basic Functions | |||
| E1 Interface Testing | ● | ● | ● |
| Data Interface Testing | ● | - | - |
| G.703 Same-Direction Testing | - | - | ● |
| Jitter Testing | - | - | ● |
| Level Testing | - | - | ● |
| Pulse Template Testing | - | - | ● |
| Dual-Channel E1 Online Error Monitoring and Time Slot Analysis | - | - | ● |
| PCM Simulation Testing | - | - | ● |
Where It's Used
- Field Maintenance for Telecom & Network Engineers
- Installation & Commissioning of Leased Lines
- Proactive Monitoring & Intermittent Fault Hunting
- Enterprise & Industrial Network Legacy Link Maintenance
- Quality Auditing & Preventive Maintenance for Service Providers
Package Content
- T1000M Main Unit (with lithium battery)
- Wrist Strap
- Data Cable (DB26 to V.35 Male/Female, 1m)
- Data Cable (DB26 to DB25 Male/Female, 1m)
- USB Cable (for PC connection)
- BNC Cable (1m)
- Printer Cable (DB26 to Centronics)
- DB26 to RJ45 Adapter
- 220V to 9V/2A Power Adapter
- User Manual (U-Disk)
- Carrying Case
- Outer Carton
