Cable and Antenna Analyzers

Cable and Antenna Analyzers (CAA) are essential field instruments for testing, commissioning, and maintaining RF cable and antenna systems. They are widely used in mobile network base stations, DAS systems, broadcasting infrastructure, private wireless networks, and antenna installations.

Designed for on-site operation, cable and antenna analyzers enable engineers to quickly evaluate system performance, identify faults, and verify installation quality—without the complexity of full laboratory instruments.

antenna analyzer

Cable and antenna analyzers help engineers efficiently solve common RF system challenges, including:

  • Poor coverage or degraded network performance
  • Unknown fault locations in feeder or antenna lines
  • High maintenance costs due to time-consuming troubleshooting
  • Acceptance testing for new installations or system upgrades

By enabling fast fault isolation and performance verification, CAAs significantly improve maintenance efficiency and network reliability. Explore our model comparison to review key specifications and select the Cable and Antenna Analyzer that best fits your application needs. ↓

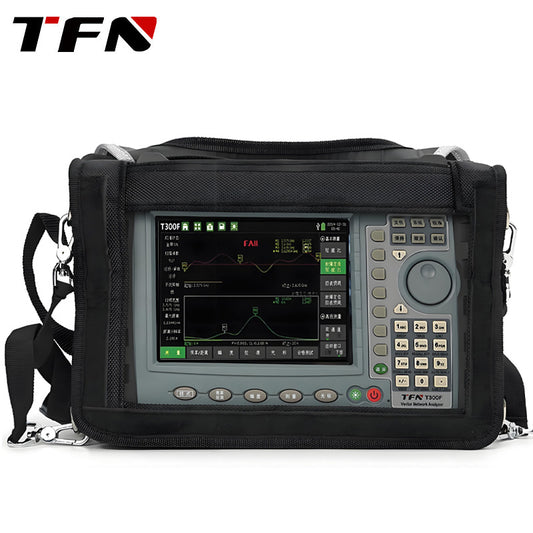

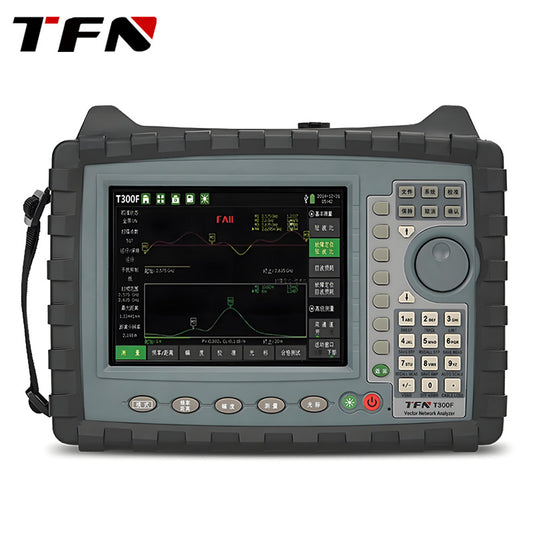

Items/Models 100A 100H &100L 150-Series T300F
Frequency Range RF Antenna: 1 MHz to 6 GHz
Spectrum: 300 MHz to 4GHz		 1 MHz to 4.4 GHz/6 GHz 2 MHz to 4.4 GHz/6 GHz 100 kHz to 15 GHz
Frequency Resolution 1 kHz 1 kHz 0.5 kHz 1 kHz
Return Loss 0-60 dB 0-60 dB 0-60 dB 0-60 dB
LCD Touch Screen 7 inch 7 inch 6.5 inch 6.5 inch
Weight 2.5 kg 2.5 kg 2.2 kg 2.2 kg
Battery Life 7800 mAh, over eight hours 7800 mAh, over eight hours over eight hours 5200 mAh, over six hours
