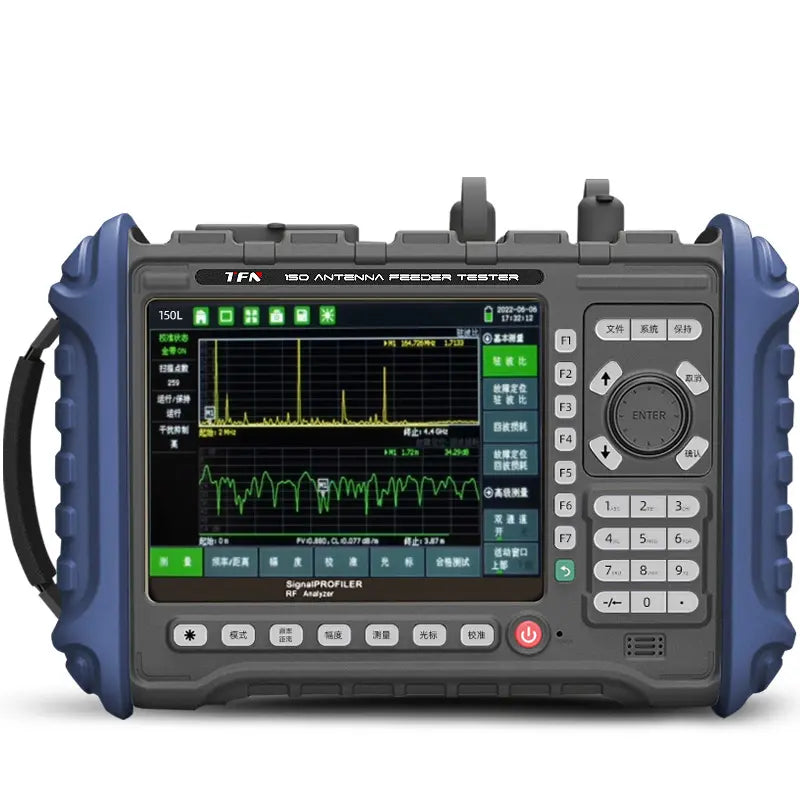

The TFN 150H/L cable and antenna analyzer are portable testing device designed for base station installation, maintenance, and field diagnostics in telecommunication networks. It supports comprehensive measurements including VSWR, return loss, cable loss, fault location (DTF), Smith chart, and phase analysis. The 150 Series delivers accuracy and efficiency in one robust device.
Product Features
✅ All-in-One Field Testing Solution
The TFN 150 Series combines antenna testing, cable diagnostics, optical power measurement, and GPS positioning in a single handheld unit. This improves testing efficiency for base station and RF system maintenance.
✅ High Precision with Wide Frequency Coverage
With a frequency range from 2 MHz to 6 GHz and a 60 dB dynamic range, this analyzer delivers exceptional accuracy for VSWR, return loss, and DTF measurements. Its high resolution and fast sweep speed ensure reliable performance in demanding environments like cellular networks and broadcast systems.
✅ Built-in E-CAL for Quick Calibration
Say goodbye to cumbersome manual calibration. The built-in electronic calibration (E-CAL) module allows for one-touch, full-band calibration, saving time and reducing human error—ideal for field technicians who need to perform accurate measurements rapidly.
✅ Rugged and Portable Design
Weighing less than 2.2 kg and built to withstand harsh field conditions, the 150 Series is both durable and easy to transport. Its long-lasting battery supports over 6 hours of continuous operation, making it perfect for remote site testing and extended fieldwork.
✅ Smart Software Integration
Compatible with SITE WORKBENCH PC software, this analyzer enables advanced data management, automated report generation, and remote control via WiFi. You can analyze historical data, set pass/fail limits, and export professional test reports with embedded GPS information.
Spec Sheet
| Frequency range | 150L: 2 MHz ~ 4400 MHz 150H: 2 MHz ~ 6000 MHz |
| Number of data points | 130 / 259 / 517 / 1033 / 2065 |
| Output Level | > 0 dBm |
| Scan speed | 1 ms/point (return loss) |
| Directionality | < -42 dB (after mechanical calibration) |
| Maximum input power | +27 dBm |
| Battery life | > 8 hours |
| Operating temperature | -30 °C ~ +60 °C |
| Weight | 2 kg |
- VSWR Measurement-Quickly assess antenna and feeder matching
VSWR measurement shows how well the antenna and feeder are matched. By monitoring VSWR values, users can easily identify mismatch issues and take corrective action to reduce signal reflection and transmission loss.
- Phase Measurement-Analyze phase behavior for system consistency
Phase measurement displays the phase characteristics of the transmitted signal. This function is especially useful for feeder length calibration, phase alignment, and multi-antenna system adjustment.
- Smith Chart Display-Visualize impedance behavior for precise tuning
The Smith Chart provides a graphical view of impedance and matching conditions across the frequency range. It helps engineers quickly analyze impedance changes and optimize antenna tuning and system performance.
Where It's Used
- Telecommunications operators: base station installation, inspection and maintenance
- Engineering contractor: indoor distribution system, wireless coverage project
- Research and teaching units: Communication principles teaching, radio frequency experiments
- Production testing: Antenna and feeder factory testing
Package Content
Standard Configuration:
- 150H Cable & Antenna Analyzer
- User Manual (U-Disk)
- N-type Calibration Kit (or E-CAL Electronic Calibrator)
- 1.5m N-type RF Cable
- 11.1V/5.2Ah Lithium Battery
- AC-DC Power Adapter (100–240V)
- Carrying Case
Optional Accessories:
- GPS Receiver Module
- Termination Power Meter
- Through-Line Power Meter
- Vehicle Charger (12VDC)
- Additional RF Adapters & Cables
