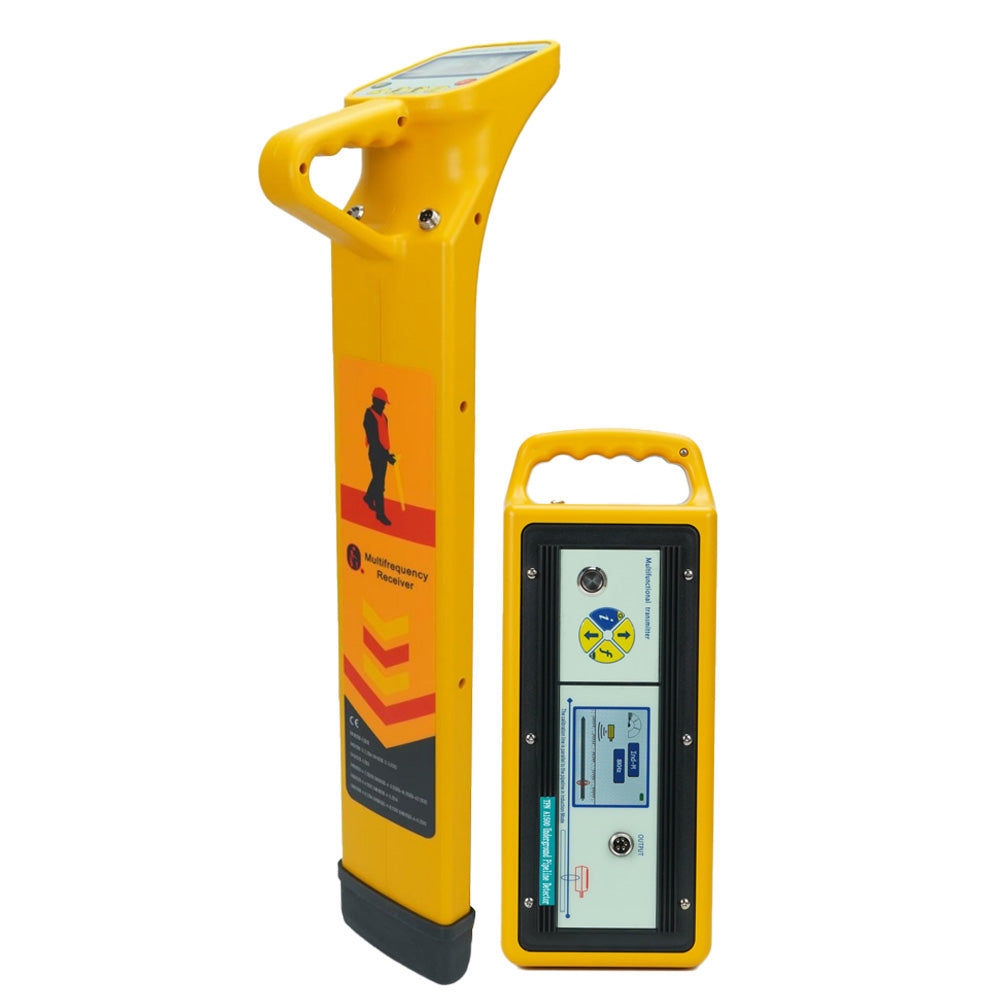

The A1500 underground pipeline locator is a professional detection system for accurately locating, tracing, and mapping underground pipelines and cables. It combines a 10 W high-power transmitter with a multi-frequency intelligent receiver, providing real-time position, depth, and signal strength information.
Product Features
✅ Accurate Positioning and Depth Measurement
The A1500 provides reliable location and depth readings with a depth error of ≤5% within 3 meters and ≤10% beyond 3 meters. Real-time depth display and a high-performance chipset support accurate mapping of underground utilities, helping avoid accidental damage during excavation.
✅ 10 W Transmitter for Deeper Detection
With a 10 W output and up to 60 V signal strength, the transmitter delivers strong, stable signals for detecting pipelines and cables at depths of over 6 meters. Compared with traditional 6 W systems, it performs better in deep-buried or congested utility corridors.
✅ Multi-Frequency Detection for Different Utilities
The A1500 supports multiple active frequencies—577 Hz, 8 kHz, 33 kHz, 82 kHz, and 133 kHz—as well as 50 Hz power frequency mode. This allows users to select the most suitable frequency for different pipe materials, depths, and site conditions.
✅ Long Battery Life for Field Work
Dual lithium-ion batteries provide extended operating time:
≥5 hours at 10 W, ≥8 hours at 5 W, and ≥12 hours at 1 W. This supports full-day field work without frequent recharging.
✅ Intelligent Receiver with Clear Guidance
The receiver offers Peak, Valley, and Wide locating modes, with directional arrows and a high-contrast LCD showing depth, signal strength, and current in real time. Automatic gain control and clear visual indicators make the system easy to use, even for less experienced operators.
Spec Sheet
| Transmitter | |
| Output Power | 10 W |
| Output Voltage | 60 V |
| Output Current | 1 A |
| Operating Frequency | 577 Hz, 815 Hz, 8 kHz, 33 kHz, 65.5 kHz, 82 kHz, 133 kHz (can output three frequencies simultaneously) |
| Power Supply | Lithium-ion Battery Pack |
| Operating Time | ≥5 hours (10W),≥8 hours (5W),≥12 hours (1W) |
| Display | Color LCD |
| Receiver | |
| Positioning Accuracy | ±5% (0-3 m depth), ±10% (>3 m depth) |
| Detection Depth | 0-6 m and above |
| Receiving Frequency | 50 Hz, 577 Hz, 815 Hz, 8 kHz, 33 kHz, 65.5 kHz, 82 kHz, 133 kHz |
| Gain Control | Auto/Manual, 0-100 dB |
| Locating Modes | Peak, Wide Peak, Valley |
| Power Supply | Lithium-ion Battery Pack |
| Operating Time | ≥8 hours |
| Display | Large, high-contrast LCD |
Where It's Used
- Municipal Construction: Water, Drain, and Gas Pipeline Construction and Maintenance
- Power Systems: Underground Cable Path Finding and Fault Location
- Telecommunications Engineering: Laying and Inspection of Optical and Telecommunication Cables
- Petrochemical Engineering: Underground Pipeline Network Survey and Management in Industrial Plants
- Railway and Rail Transit: Underground Facility Safety Survey
- Construction: Pre-construction Underground Pipeline Survey to Ensure Construction Safety

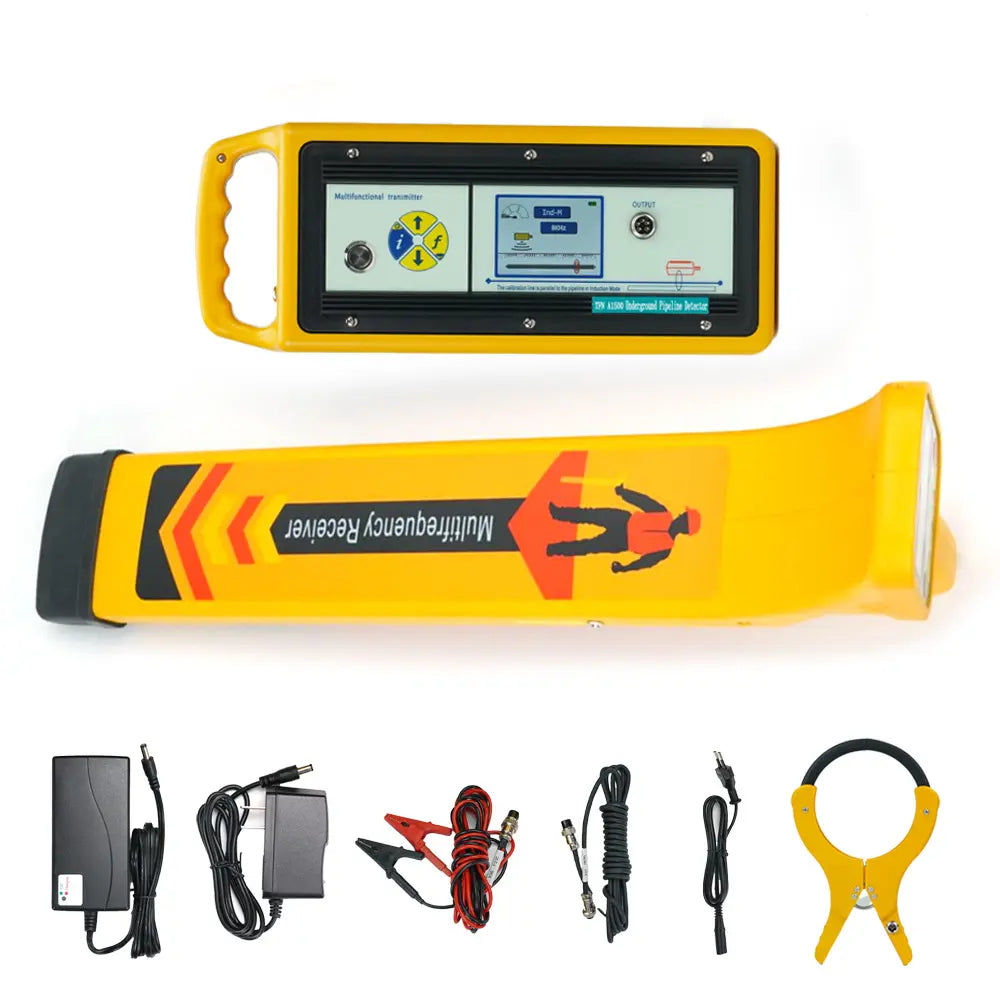

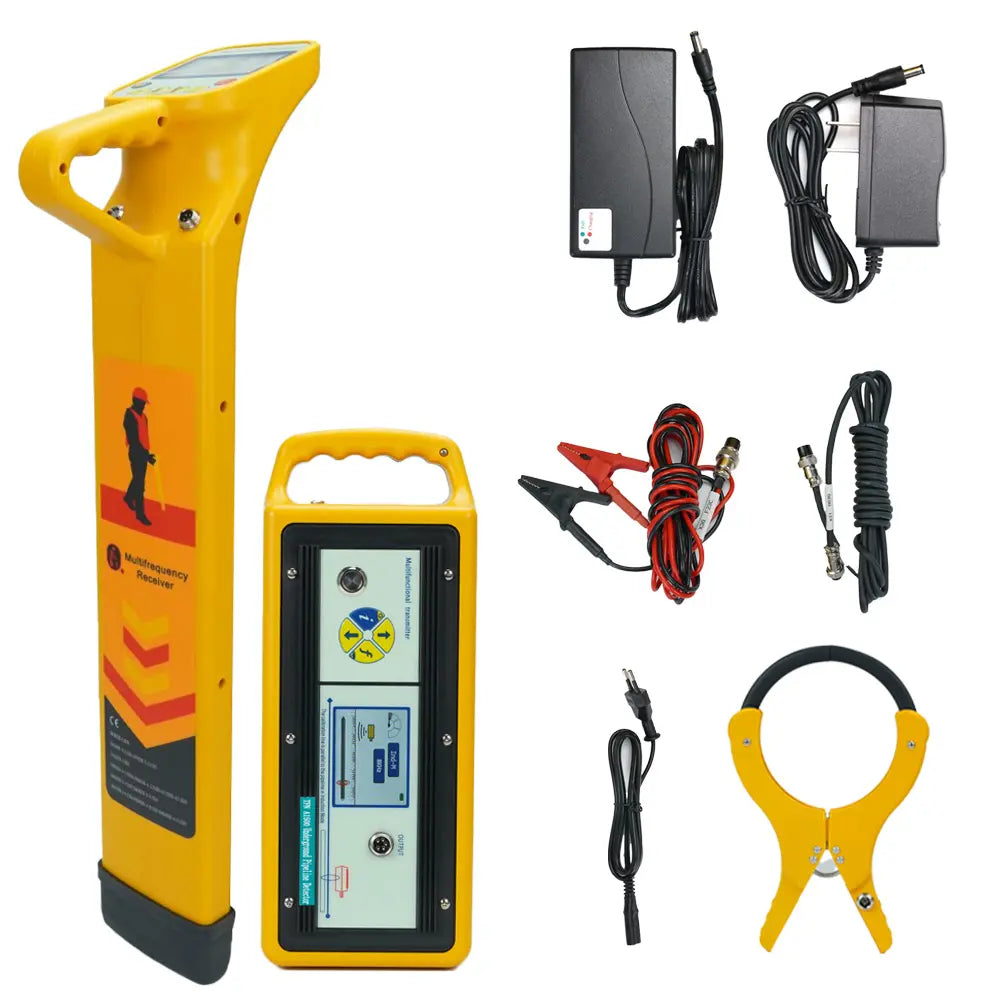

Package Content
- A1500 Transmitter
- A1500 Receiver
- Direct Connection Cable with Clips
- Coupling Clamp
- Lithium-ion Battery Packs
- Battery Chargers
- User Manual
- Carrying Case (or Storage Bag)
- Grounding Rod (if applicable)
