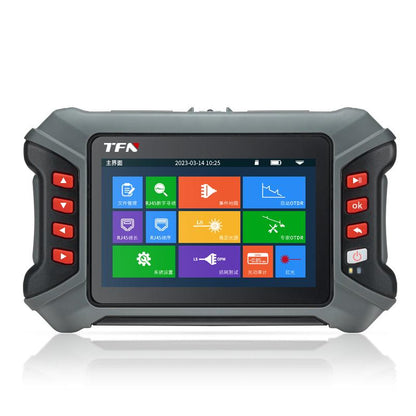

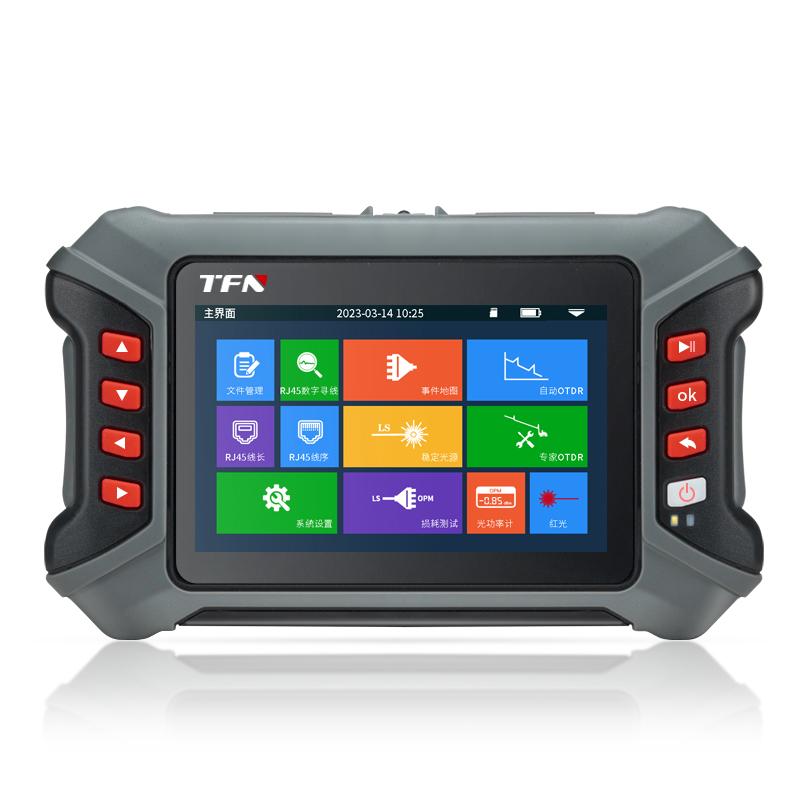

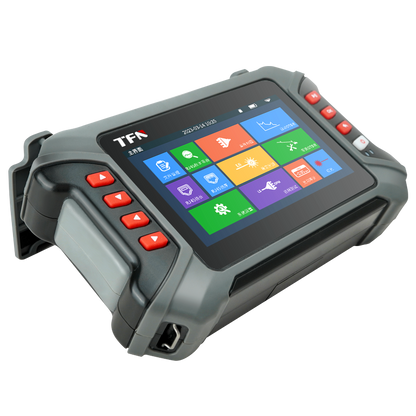

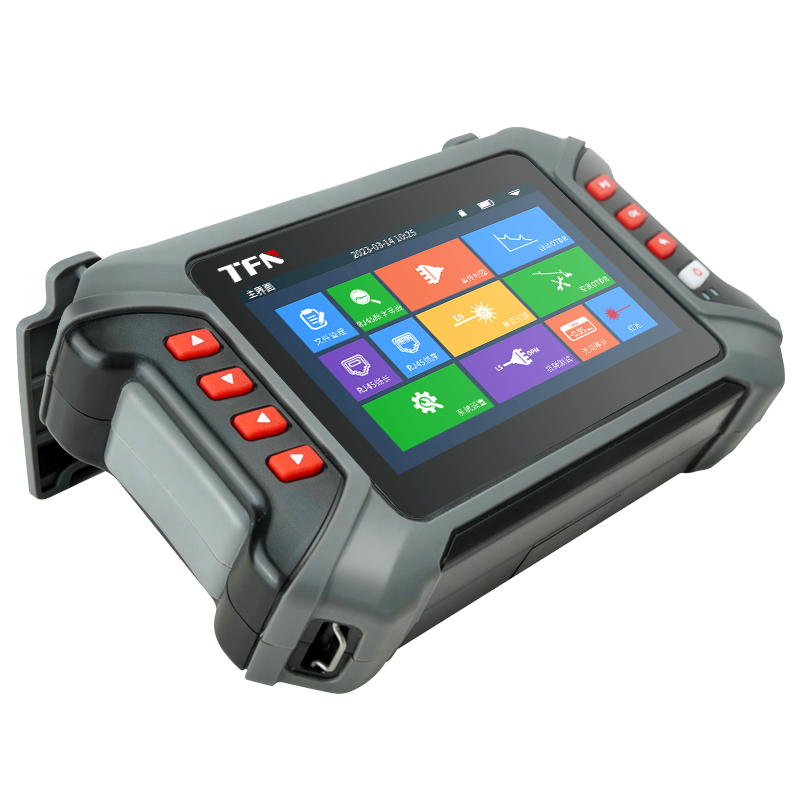

The TFN Mini Optical Time Domain Reflectometer (OTDR) is a compact, high-performance fiber optic testing instrument designed for FTTH network construction, maintenance, and fault diagnosis. It combines OTDR, OPM, VFL, OLS, and RJ45 cable testing in one device. It ensures accurate and efficient field testing. Ideal for field engineers.
Product Features
✅ High-Precision Short Dead Zone Testing
With an event dead zone as 1.5 m and ranging resolution of 0.05 m, this mini OTDR excels in short-distance patch cord and patch panel testing. It accurately locates faults even in dense fiber environments, making it perfect for FTTx link maintenance and fiber jumper testing.
✅ All-in-One Multifunctional Design

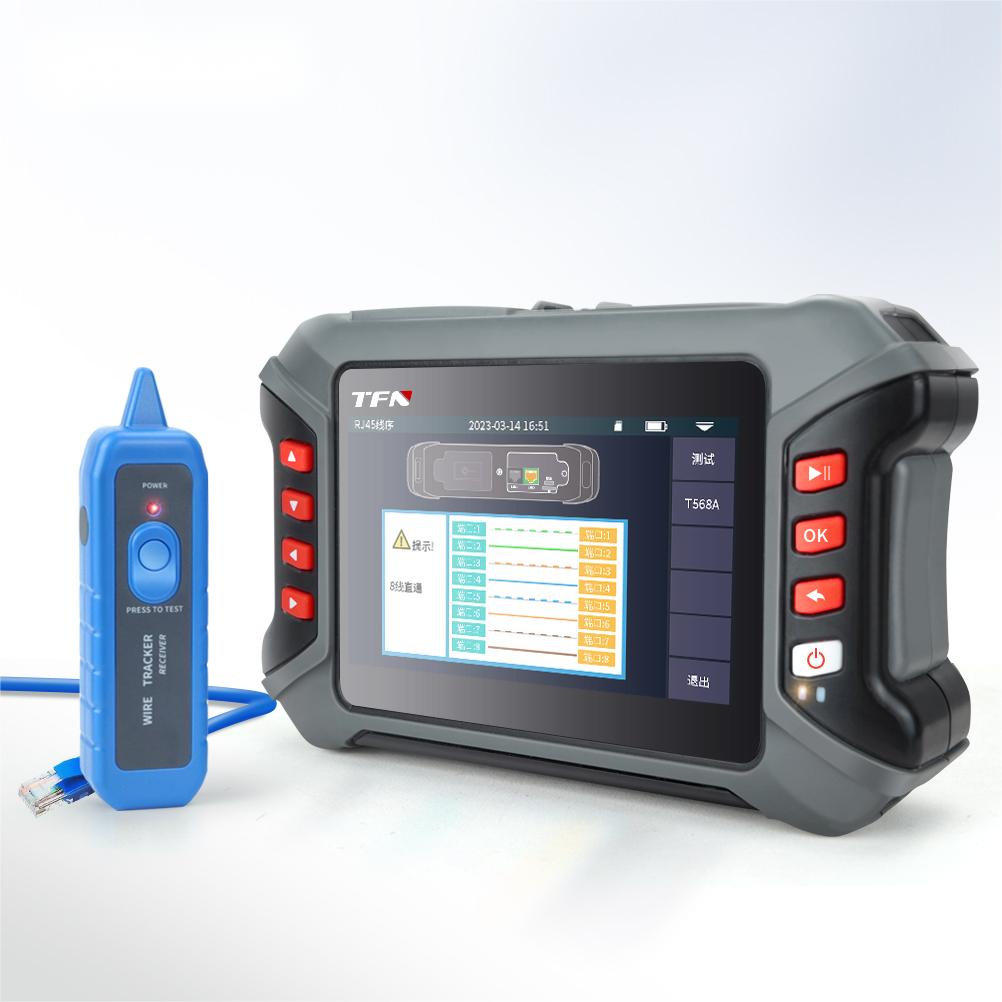

Integrates OTDR, Optical Power Meter (OPM), Visual Fault Locator (VFL), Optical Laser Source (OLS), and RJ45 cable tester in one handheld device. Eliminate the need for multiple tools and streamline your field testing workflow.
✅ Intelligent Diagnosis & Easy Operation
Features auto-test mode, real-time testing, and self-diagnosis of results for reliable data. The intuitive touchscreen and one-key operation make it accessible for both beginners and experienced technicians.
✅ Portable & Long-Lasting Battery
Weighing under 1 kg and equipped with a 6300 mAh battery, it supports up to 12 hours of continuous operation. Its compact design allows for easy carrying in tool kits, ideal for on-the-go engineers.
✅ Multi-Language & Connectivity Support

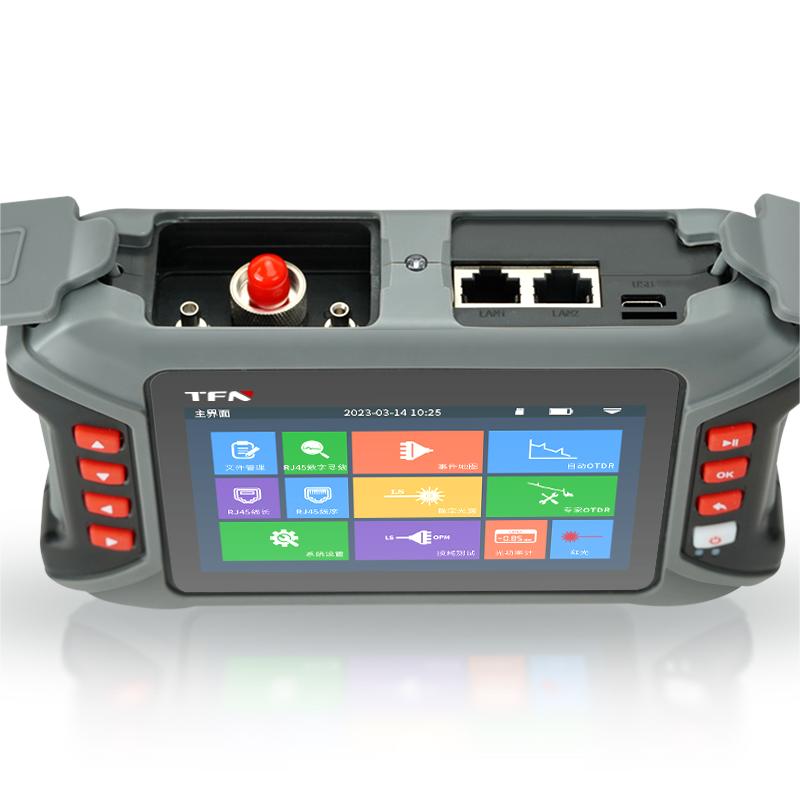

Supports 8 languages including English, French, Spanish, Russian, Arabic, Portuguese, Hindi, and Vietnamese. Offers USB, Mini-USB, Ethernet, and TF card slots for easy data export and remote operation.
Spec Sheet
| Model / Items | MN3 Mini OTDR |
| Wavelength | 1310/1550 nm |
| Dynamic Range | 28/26 dB |
| Event Dead Zone(m) | 1.5 m |
| Attenuation Dead Zone(m) | 8 m |
| Test Range | 500 m, 1 km, 2 km, 4 km, 8 km, 16 km, 32 km, 64 km, 100 km |
| Distance Accuracy | ±(1 m+ sampling interval + 0.005%*test distance) |
| Optical Connector | FC/PC （interchangeable SC, ST） |
| OPM | -70 dBm to +26 dBm |
| Battery | 6300 mAh. Standby time over 12 hours |
| Weight | 1 kg |
Functions

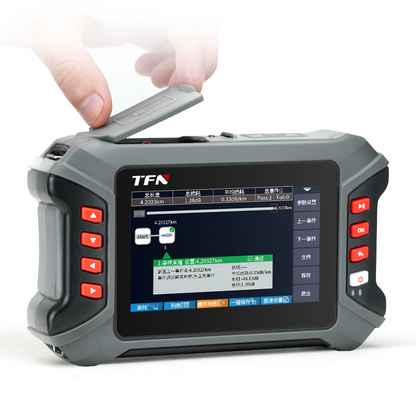

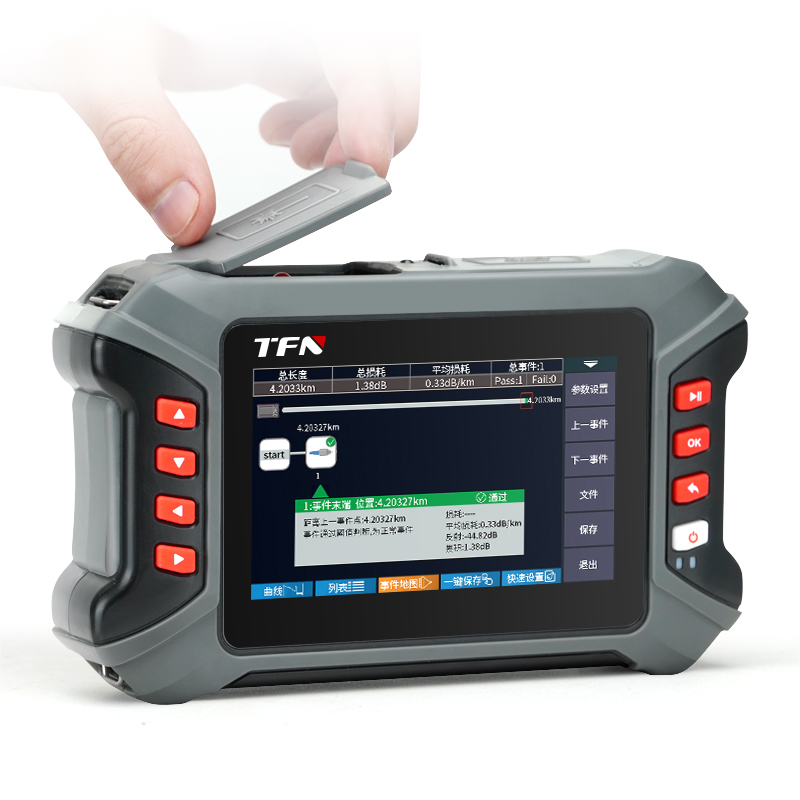

The Event Map provides an intuitive graphical view of all detected events along the fiber link, such as fiber start/end, splices, connectors, and fiber sections. Events are displayed as clear icons arranged by distance, allowing users to quickly understand the structure and condition of the link at a glance.
The OTDR offers a complete event list with detailed information for each event, including event type, distance location, loss, and return loss. Users can easily select an event from the map or list to view its corresponding position on the trace, enabling faster troubleshooting and more efficient fiber analysis.
Optical loss test.
Where It's Used
- Fiber-optic FTTH network construction and acceptance
- Fiber patch cord and patch panel testing and maintenance
- Fiber optic cable fault location and link diagnosis
- Optical communication equipment commissioning in equipment rooms
- Training and on-site training
Package Content
- TFN Mini OTDR (MN3 or F1 model)
- Interchangeable FC/SC/ST adapters
- 650 nm VFL red light module
- RJ45 remote test module
- Type-C USB cable
- Power adapter (19V, 1.31A)
- U-Disk (Include User Manual)
- Carrying case
- Alcohol wipes for fiber cleaning
