Product Features
✅ Compatible with Multiple Cables and Ducts
This micro cable blowing machine supports cable with diameters from 1 to 3 mm and duct sizes from 5 to 12 mm, making it versatile for various indoor fiber optic applications. It works seamlessly with EPFU, micro cables, and patch cords, offering flexibility across different project requirements.
✅ Automatic Overload Protection
The T200D is equipped with an intelligent overload protection mechanism that prevents excessive force during cable blowing. This feature significantly reduces the risk of damaging the cable sheath or internal fibers, ensuring long-term performance.
✅ High-Speed Cable Blowing up to 80 m/min
With a maximum blowing speed of 80 meters per minute, the T200D improves cable installation efficiency. This high-speed performance is perfect for projects requiring rapid deployment, such as FTTx and indoor network setups.
✅ Lightweight and Portable
Weighing only 7 kg, the T200D is easy to maneuver in tight spaces. Its ergonomic design allows technicians to carry and operate the machine with ease, making it an excellent choice for on-site fiber optic cable laying.
✅ Long-Lasting Battery & Low Noise Operation
Powered by a high-capacity lithium battery, the T200D supports long-time field work. Coupled with a low-noise air compressor (<75 dB), it is suitable for residential and indoor installations.
Spec Sheet
| Model | T200D |
| Power Type | Pheumatic |
| Adaptive Cable Diameter | 1-3 mm |
| Adaptive Pipe Diameter | 5-12 mm |
| Push Speed | 80 m/min |
| Thrust | 100N |
| Main Engine Rated Pressure | 13 bar (oil pressure 4~8 Mpa) |
| Host Weight | 7 kg |
| Dimmensions | 260*200*200 mm |
| Battery Capacity | 12VDC lithium battery, 5000 mAH |
| Working air pressure | 3 bar |
| Single air blowing length | 200-500 m |

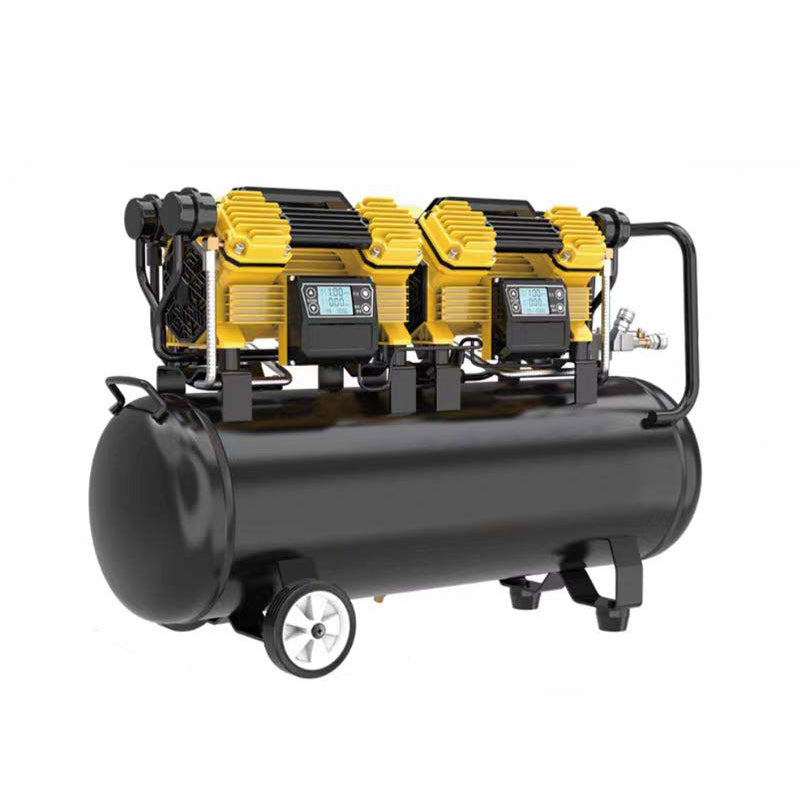

Technical indicators of matching air compressor (optional)
| Model | Electric oil-free variable frequency air compressor |
| Exhaust volume | 0.5~0.7 m³/min |
| Exhaust pressure | 8~12 bar |
| Power supply | 220V/AC |
| Noise | ≤75 dB |
| Machine weight | 50 kg |
Package Content
- T200D Host Unit (Blowing Machine) ×1
- Carrying Case ×1
- Air Compressor (D998-59L) ×1
- High-Pressure Air Hose (with connectors, φ12) ×10 m
- Drive Wheel ×1
- Cable Plugs (M2, M4) ×2
- Host Controller ×1
- Duct Plugs (5 mm, 8 mm, 10–12 mm) ×3
- Cable Sealing Rings (φ3 mm) ×10
- Cable Guide Channels (φ3 mm, φ5 mm) ×2
- Air Chamber Sealing Strips (2 mm) ×2
- Tube Scissors (12 mm) ×1
- Hex Key (M5) ×1
- Cable Blowing Lubricant ×1
- Certificate of Compliance ×1
