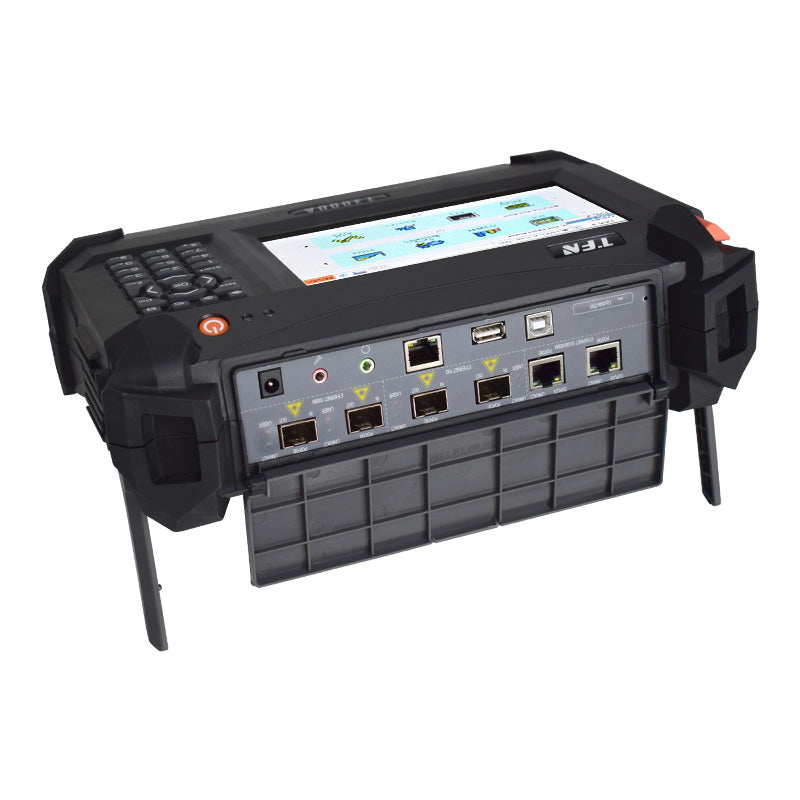

The T3000A 10-Gigabit Ethernet Tester is a high-performance handheld network testing instrument designed for next-generation metropolitan and IP bearer networks. It supports full-rate testing from 10M to 10G, covering electrical, optical, and 10G SFP+ interfaces. Integrated with advanced test suites including RFC2544, Y.1564, BERT, MPLS, and VLAN Q-in-Q, it enables comprehensive performance validation, service simulation, and fault diagnosis for Ethernet networks.
Product Features
✅ Full-Rate Testing from 10 M to 10 G
The T3000A eliminates the need for multiple testers by supporting 10 M, 100 M, 1 G, and 10 G interfaces in one compact device. Whether you're testing legacy networks or deploying 10 Gigabit Ethernet, this handheld tester delivers accurate results across all rates, saving time and equipment costs.
✅ Integrated Professional Test Suites
Equipped with industry-standard testing protocols like RFC2544 (throughput, latency, frame loss), Y.1564 (service configuration and performance), and BERT (bit error rate), the T3000A ensures reliable network validation. It also supports advanced features such as MPLS, VLAN stacking, and IPv6 testing.
✅ Multi-Service Traffic Generation & Analysis
Simulate real-world network conditions with up to 16 concurrent data streams. Generate traffic, monitor performance, and analyze QoS metrics such as jitter, latency, and packet loss—all from a single device.
✅ Non-Intrusive Online Monitoring & Loopback Testing
Perform penetration testing and L1–L4 loopback without disrupting live services. The T3000A enables intelligent fault location and continuous monitoring, making it ideal for maintaining mission-critical networks.
✅ Large Touch Screen & Remote Management

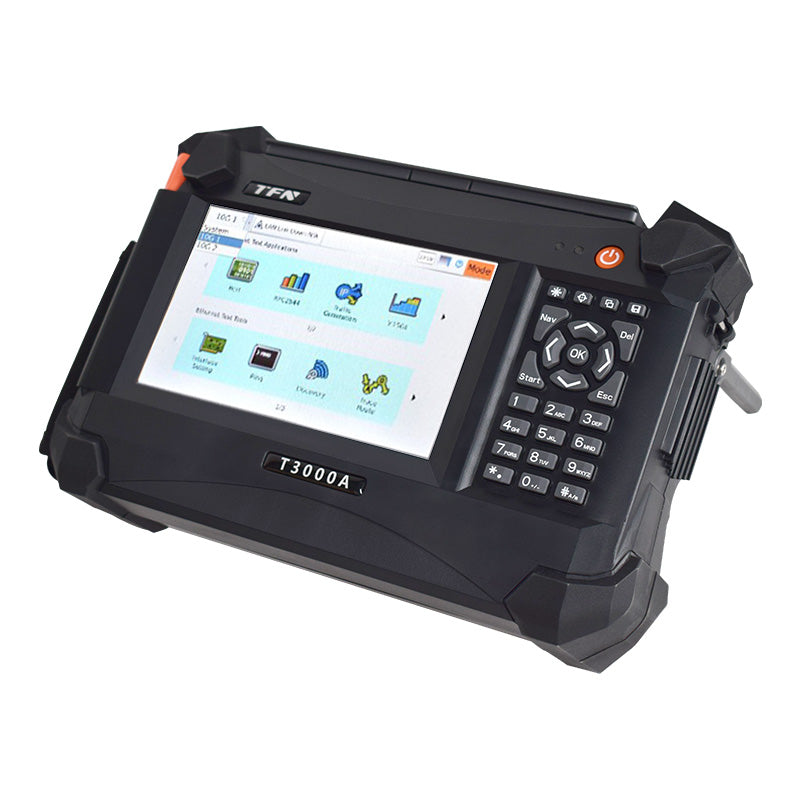

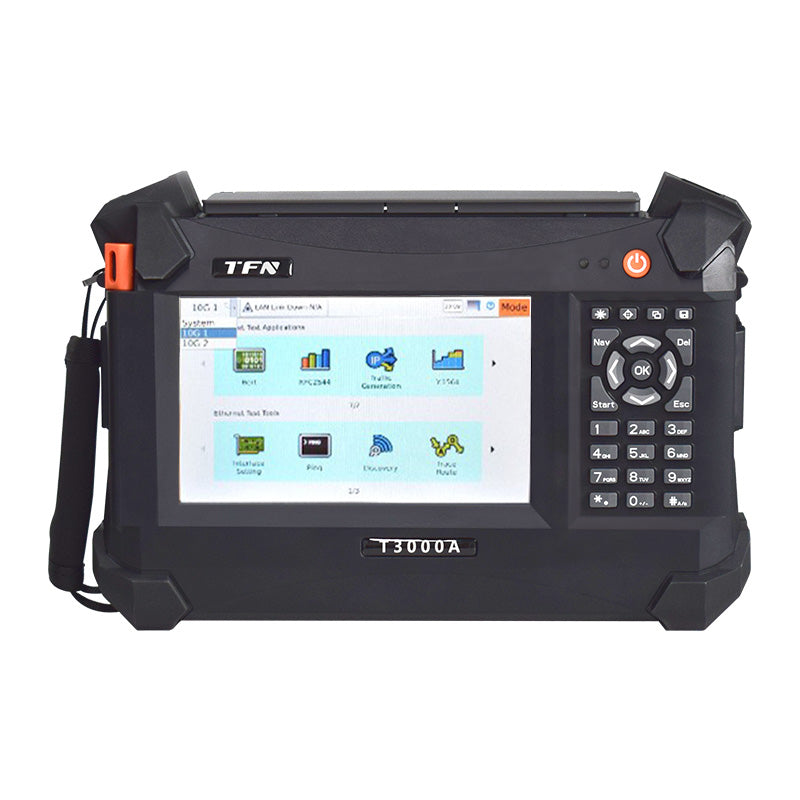

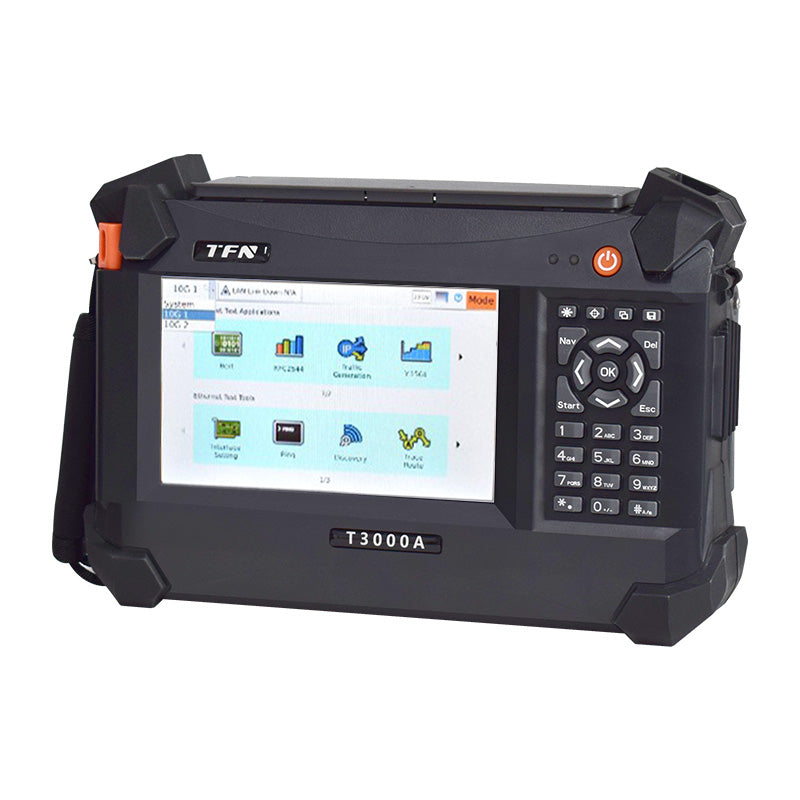

Navigate easily with a 7-inch high-resolution touch screen and intuitive GUI. Additionally, support for PC remote control allows engineers to manage tests and view results from a desktop, enhancing flexibility in lab and field environments.
Spec Sheet
| Optical interfaces | Two GigE interfaces | ||
| 1000Base-SX | 1000Base-LX | 1000Base-ZX | |
| Wavelength (nm) | 850 | 1310 | 1550 |
| Laser type/connector/ transceiver type |
VCSEL/LC/SFP | FP/LC/SFP | DFB/LC/SFP |
| Electrical interface | Two 10/100BaseT half/full-duplex and 1000BaseT full-duplex ports, with straight-through or crossover cable options | ||
| 10BaseT | 100BaseT | 1000BaseT | |
| Connectors | RJ-45 | RJ-45 | RJ-45 |
| Test items | |||
| Y.1564 | Test network configuration and services in accordance with ITU-T Y.1564. Use remote loopback or dual tester mode for bidirectional results. | ||
| RFC2544 | Measure throughput, back-to-back transmission, frame loss, and latency as specified in RFC 2544. Frame size: RFC-defined, user-configurable from 1 to 7. | ||
| BERT error test | Supports Layer 1 through Layer 4 with or without VLAN Q-in-Q. | ||
| Through mode | Segments traffic between the service provider network and customer premises equipment. | ||
| Service disruption time (SDT) | Includes statistics: minimum, maximum, last median, average, total outage time, and pass/fail thresholds. | ||
| Multi-stream generation | Transmit and monitor up to 16 data streams on Ethernet and IP networks. | ||
| Traffic generation and monitoring | Generate and monitor Ethernet and IP traffic with statistics including throughput, frame loss, sequencing, jitter, latency, frame size, traffic type, and flow monitoring. | ||
| VLAN stacking | Supports up to two VLAN layers (IEEE 802.1ad Q-in-Q), configurable by VLAN ID or priority. | ||
| IPv6 testing | Including BERT, RFC2544, traffic generation and monitoring, smart loopback, Ping, and Traceroute. | ||
| General indicators | |||
| Interface | USB 2.0 port; RJ-45 LAN | ||
| Storage | 8 GB | ||
| Data interface | RJ-45 / USB | ||
| Display | 7-in color LCD touchscreen, 960×480 | ||
| Battery life | Continuous operation for more than 4 hours | ||
| Size | 282 × 186 × 75 mm, 2.9 kg | ||
- Tester Interface
- Bit-error-rate-test
The BERT test measures the bit error rate during data transmission, helping identify signal integrity issues such as noise, interference, or physical layer faults. It is essential for link validation and long-term network stability testing.
- RFC 2544 test
The RFC 2544 test evaluates key Ethernet performance metrics, including throughput, latency, frame loss, and back-to-back frames. It is widely used for network commissioning, service verification, and performance benchmarking.
Where it's Used
- 10G Ethernet access and aggregation layer commissioning acceptance
- Data center interconnection and cloud service performance verification
- Carrier IP/MPLS network service quality monitoring
- Enterprise core network upgrade and troubleshooting
- R&D and verification testing for network equipment manufacturers
Package Content
- T3000A Main Unit ×1
- AC/DC Power Adapter ×1
- Rechargeable Lithium Battery ×1
- Wrist Strap ×1
- Foldable Stand ×1
- USB Cable ×1
- User Manual & Quick Guide ×1
- Protective Carrying Case ×1
- Calibration Certificate ×1
- Optional: SFP/SFP+ modules (sold separately)
