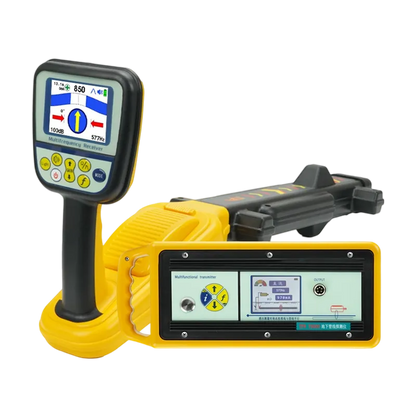

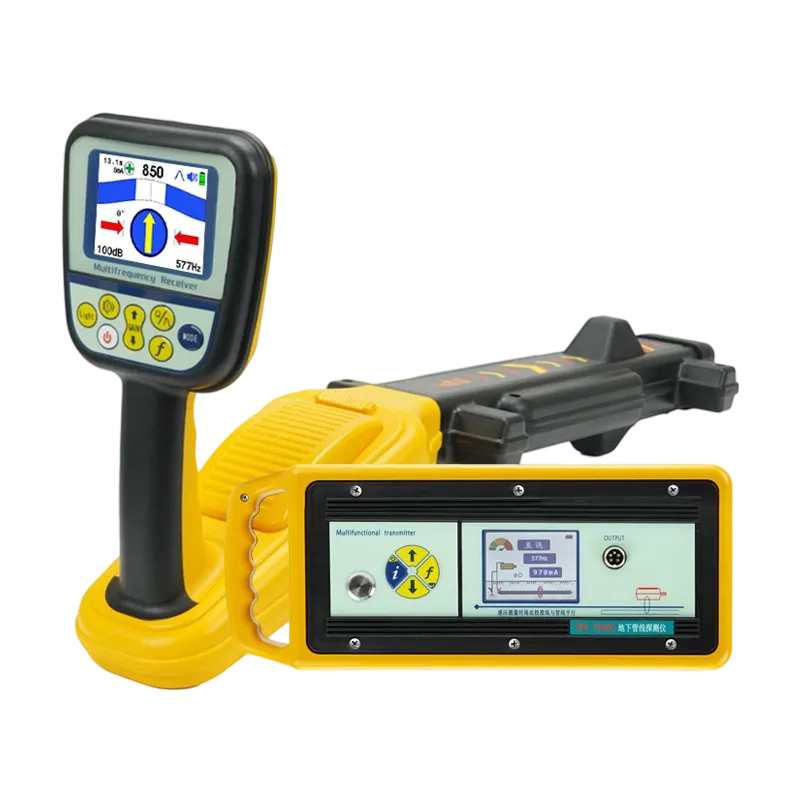

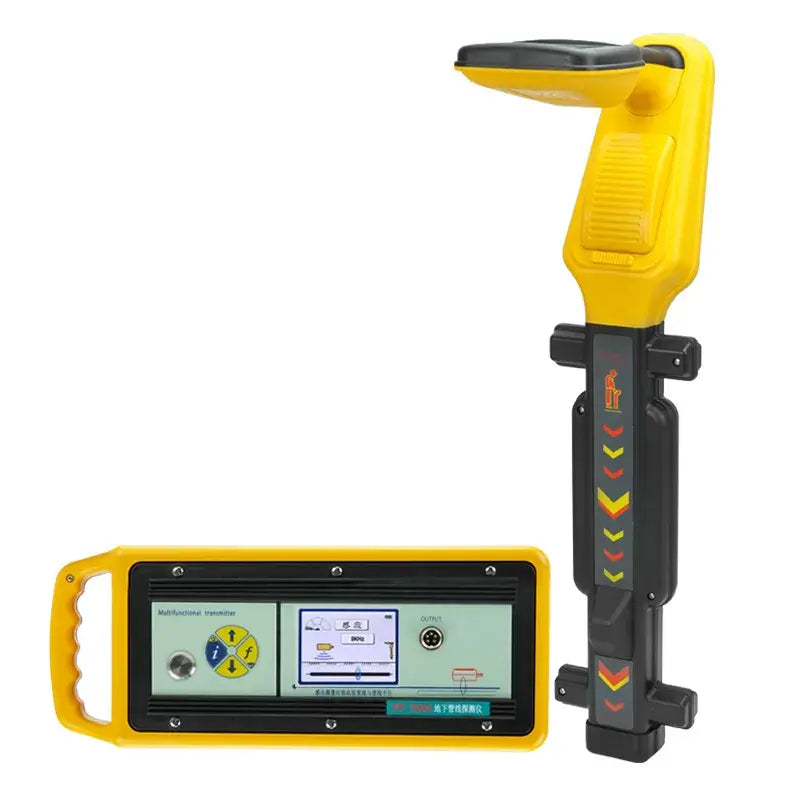

The T6000 underground pipe and cable locator is for accurate detection, tracing, and mapping of buried utilities. Equipped with a multi-frequency transmitter and an intelligent receiver, the T6000 detects pipelines at depths of up to 20 meters. It delivers reliable performance in complex environments, supporting safe and efficient underground surveys for municipal, utility, telecom, and construction applications.
Product Features
✅ Ultra-Deep Detection
The T6000 accurately traces underground pipes and cables at depths of up to 20 meters. Its high-power 12 W transmitter ensures stable signal transmission in challenging soil conditions.
✅ 31 Frequencies for Precise Localization
Offering 31 output frequencies ranging from 98 Hz to 200 kHz, the T6000 adapts to different pipe materials, cable types, and site conditions. Operators can select the optimal frequency to reduce interference and achieve clearer, more reliable detection results.
✅ Current Direction & Phase Indication
The system displays current direction and phase information, allowing operators to distinguish target lines from adjacent utilities. This feature significantly reduces signal confusion and improves accuracy when working in congested underground networks.
✅ Clear Visual Guidance with 3.5-Inch Color Display
The high-resolution color LCD provides real-time visualization of signal strength, depth, current, compass direction, and left/right guidance. Combined with intuitive icons and audio cues, it enables fast interpretation and confident decision-making on site.
✅ Flexible Detection Modes with Blind Test Support
Supporting direct connection, coupling, and induction modes, the T6000 handles a wide range of detection scenarios. The blind test function enables efficient identification of unknown or unmarked utilities, making the system ideal for pre-construction surveys and fault location tasks.
Spec Sheet
| Items/Model | T6000 Pipe Locator |
| Maximum detection depth | 20 m |
| Operating frequency | 9 optional frequencies (including 50Hz, 60Hz, 577Hz, 8kHz, 33kHz, 133kHz, etc.) |
| Positioning mode | Broad peak method, trough method, broad peak arrow method, peak and trough combination method |
| Display Guide | Signal strength bar, left and right arrow compass direction indicators, depth reading |
| Transmitter characteristics | Multi-frequency high power, constant power output, automatic load matching |
| Receiver characteristics | Based on the principle of electromagnetic wave reflection and induction, it integrates digital filtering and wireless receiving technology |
| Operational Adjustment | Gain adjustment, backlight adjustment, volume adjustment |
Where It's Used
- Preliminary exploration for municipal construction and road construction
- Inspection and maintenance of communication optical cables and power cables
- Positioning and survey of underground pipelines such as oil, gas, and water
- Management and drawing verification of underground pipe network systems within factories and parks
- Check for underground obstacles on the site before construction

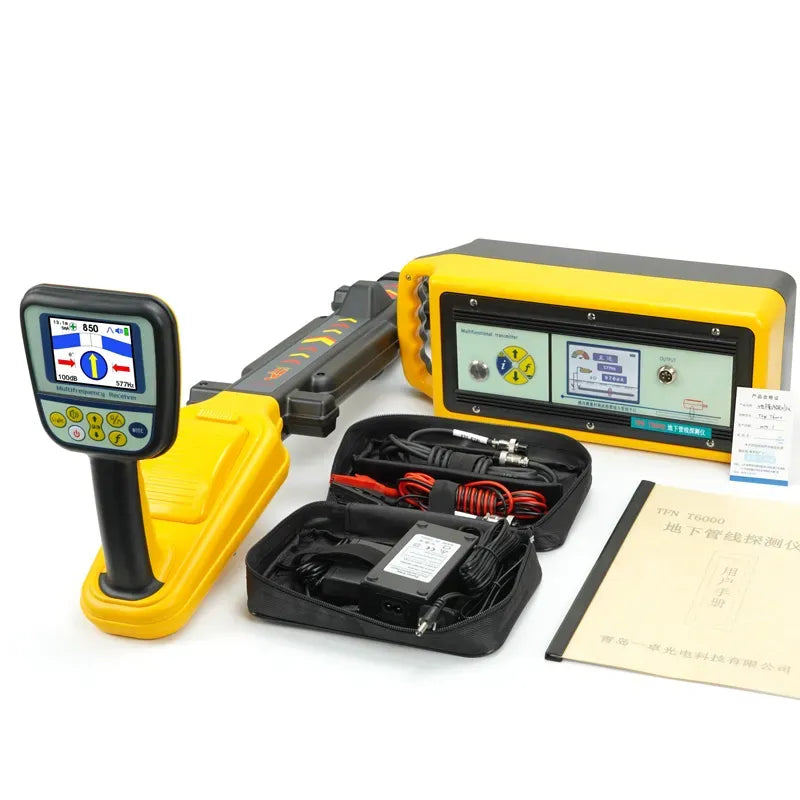

Package Content

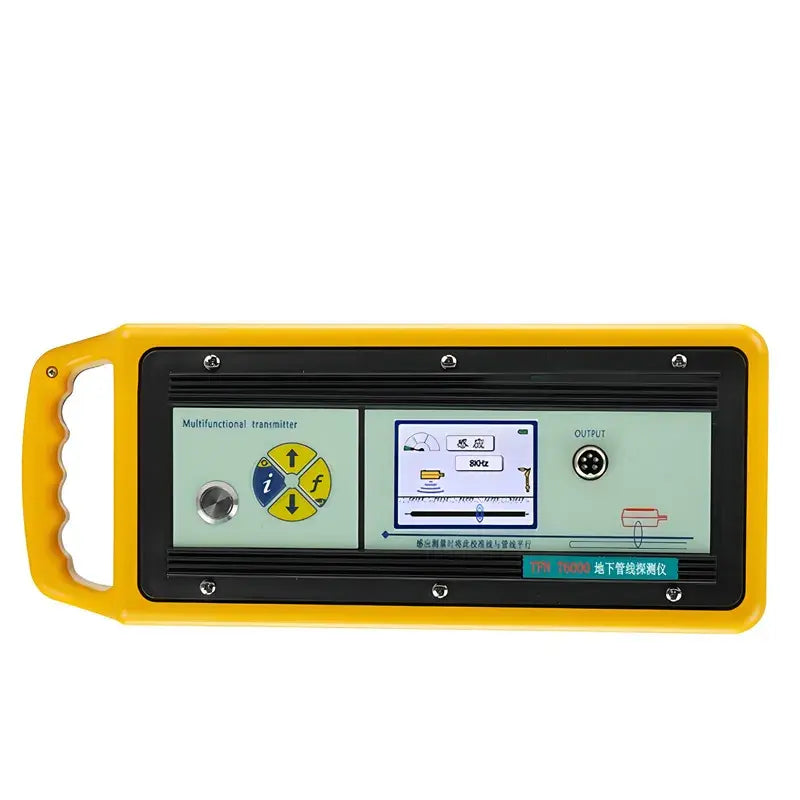

- T6000 Transmitter

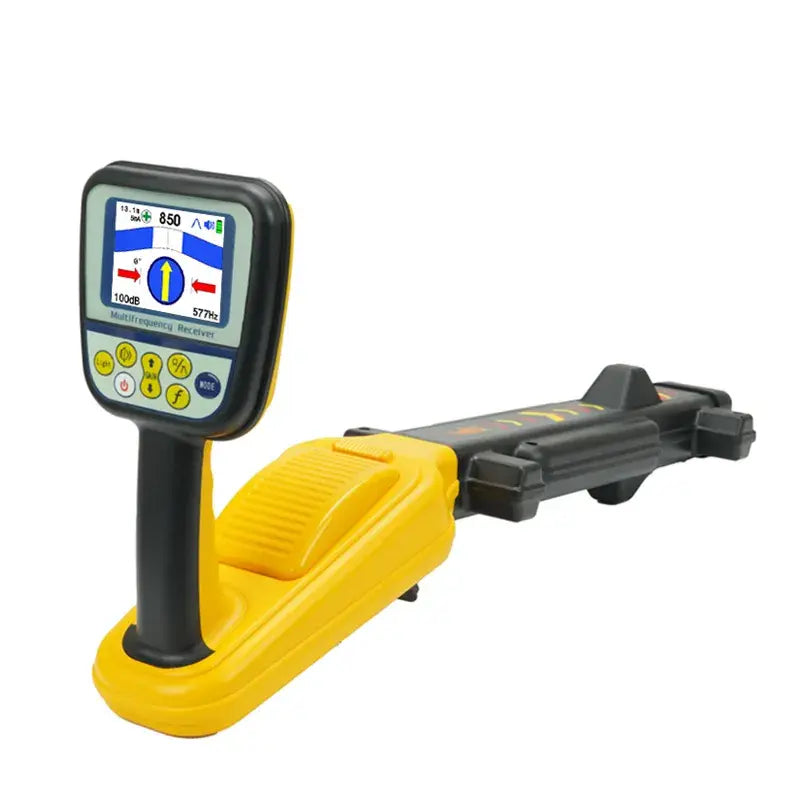

- T6000 Receiver
- Direct Connection Cable with Alligator Clips
- Coupling Clamp
- Lithium-ion Battery Packs
- Battery Chargers
- User Manual

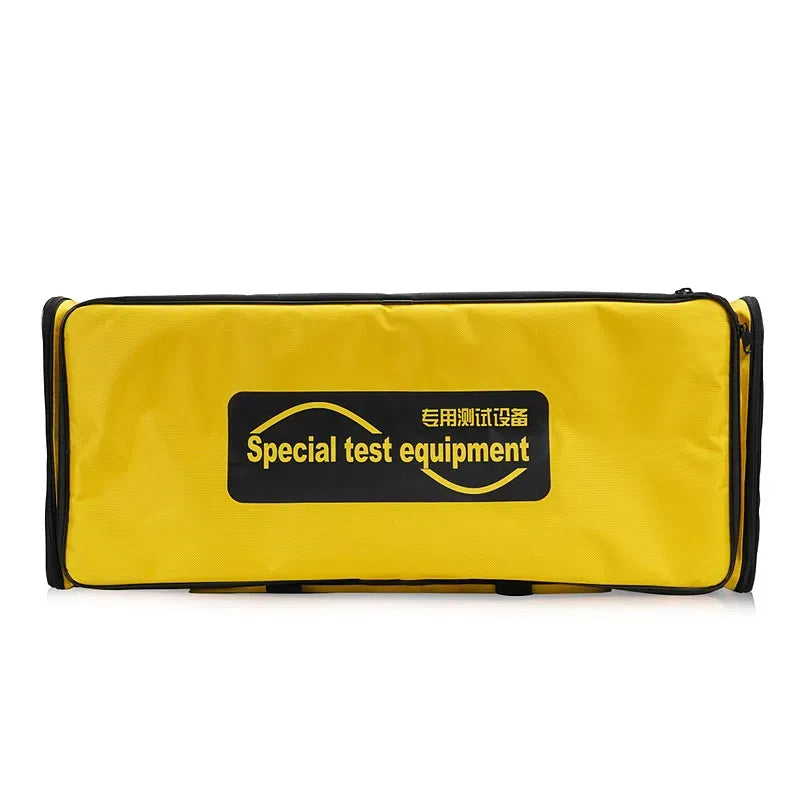

- Carrying Case or Storage Bag
- Grounding Rod (if applicable)
