Product Features
✅ High-Efficiency Pneumatic Cable Installation

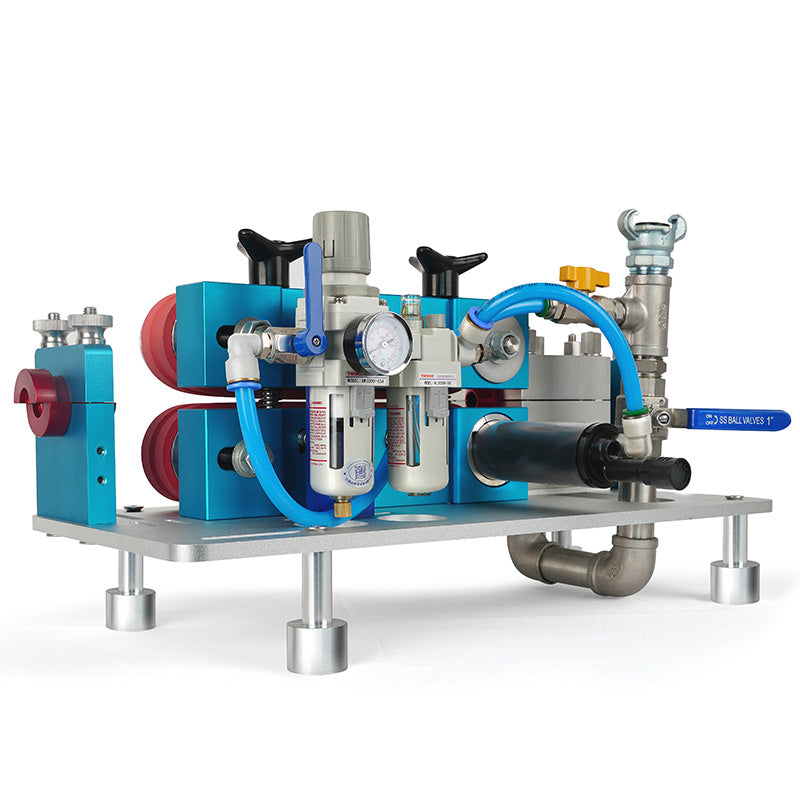

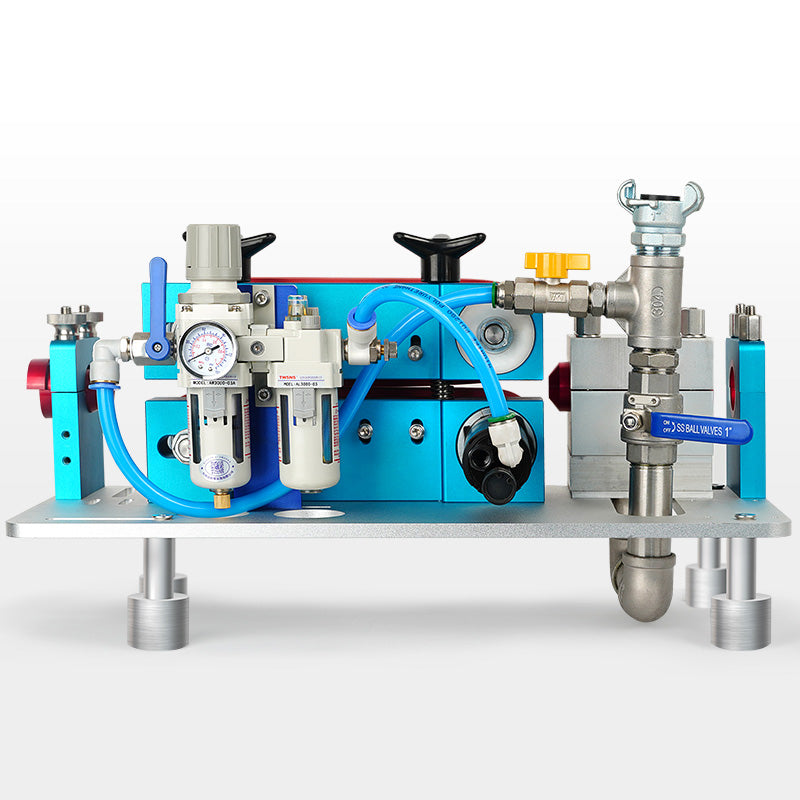

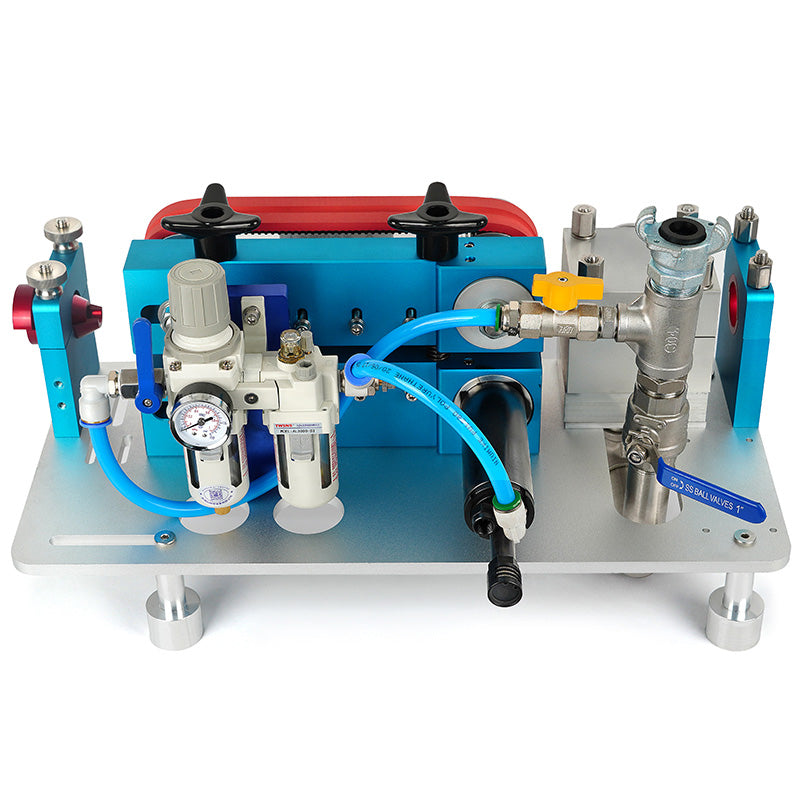

The T700CQ uses advanced compressed air technology to blow optical cables into HDPE or PE ducts smoothly. This method reduces cable tension, prevents external damage, and minimal signal attenuation compared to traditional pulling methods. It is perfect for installing micro cables, standard optical fibers, and multiple micro tubes simultaneously.
✅ Adjustable Conveyor Belt for Cable Protection

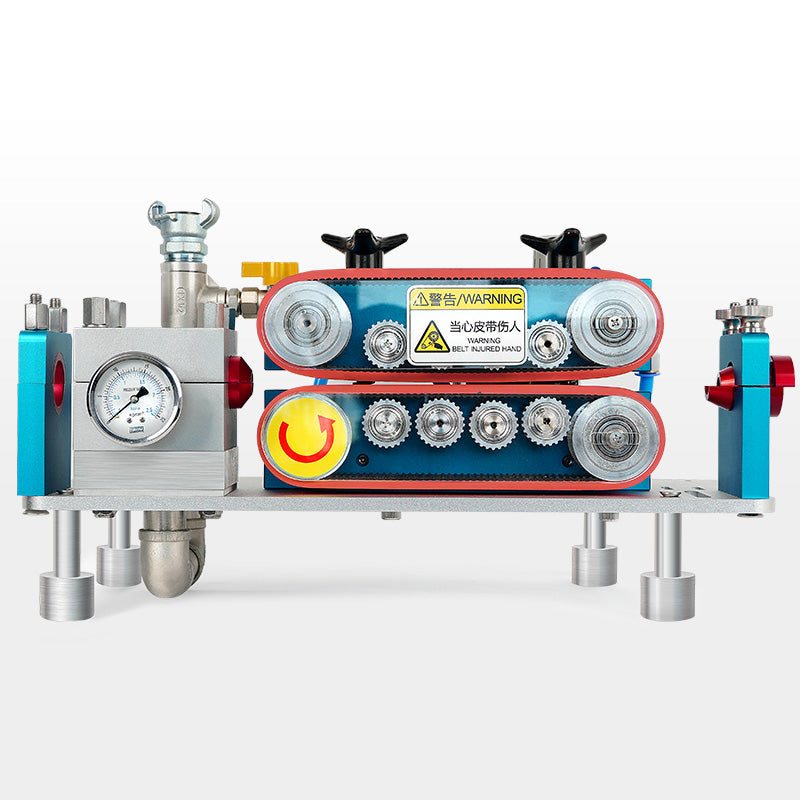

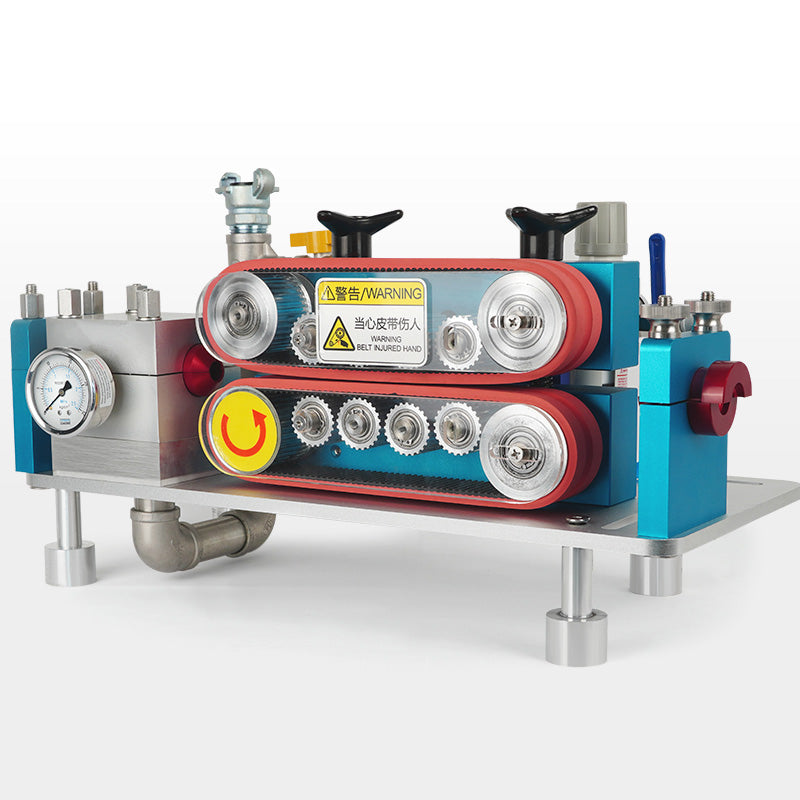

Equipped with a durable, low-friction conveyor belt, the T700CQ ensures controlled, low-stress handling of optical cables during installation. Adjustable belt pressure accommodates different cable diameters and helps prevent sheath damage and fiber stress.
✅ Versatile Compatibility for Various Cables and Tubes
It supports a wide range of applications, including standard optical cables (GYTA), non-armored micro cables (GCYFY, JET OUFU), and HDPE micro tubes. It can blow 1–3 micro tubes (10/8 mm) at once and is suitable for cable diameters from 6 mm to 14 mm.
✅ Easy to Operate and Maintain
The T700CQ features intuitive controls and flexible speed adjustment, allowing operators to get up to speed quickly with minimal training. Its rugged, service-friendly design simplifies maintenance and ensures long-term reliability in the field.
✅ Compact and Portable with High-Power Output
Despite its small size, the T700CQ delivers strong pushing force up to 700N. It is 28 kg and comes with a durable aviation case, making it easy to transport and deploy in various outdoor and indoor environments.
Spec Sheet
| Model | T700CQ |
| Drive Type | Pneumatic |
| Suitable Optical Cable | 6-14 mm |
| Adaptive Duct Diameter | 10-40 mm |
| 10/8 Air-Blown Microduct | 1-3 pieces |
| Pushing Speed | 0-120 m/min |
| Pushing Force | 700 N |
| Main Engine Rated Pressure | 13 bar |
| Weight | 28 kg |
| Package Weight | 42 kg |
| Dimensions (Length x Width x Height) | 550*300*330 mm |
| Package Dimensions (Length x Width x Height) | 700*400*450 mm |
Where It's Used
- Smart railway
- Urban Integrated Office Area
- Petrochemical Long-Distance Pipeline
- Fiber-to-the-Home (FTTH)
- Telecom Operator Fiber Optic Cable Deployment
- Global 5G Network Deployment
- High-Speed Monitoring System
Package Content
- T700CQ Host Machine ×1
- Aviation Packing Case ×1
- High-Pressure Air Hose (10 m) ×1
- Conveyor Belt ×4
- Cable Plugs (M10, M16) ×2
- Pipe Plugs (10–20 mm, 32 mm, 40 mm) ×3
- Cable Sealing Rings (Ø6–14 mm) ×20
- Quick Connectors (G1") ×2
- Sealing Rings for Connectors ×4
- Cable Guide Grooves (Ø10, Ø16) ×2
- Hose Clamp ×1
- Air Chamber Seal ×2
- Hydraulic Seals ×8
- Pipe Scissors ×2
- Hex Key Set ×1
- Pliers ×1
- Pipe Union (Ø40) ×1
- Blowing Lubricant (25 kg) ×1
- Pipe Tester (DN40) ×1
- Longitudinal Scissors ×1
- Caliper (150 mm) ×1
- Shuttles (Ø30 mm) ×6
- Nameplate ×1
- Certificate of Conformity ×1
- Factory Inspection Report ×1
