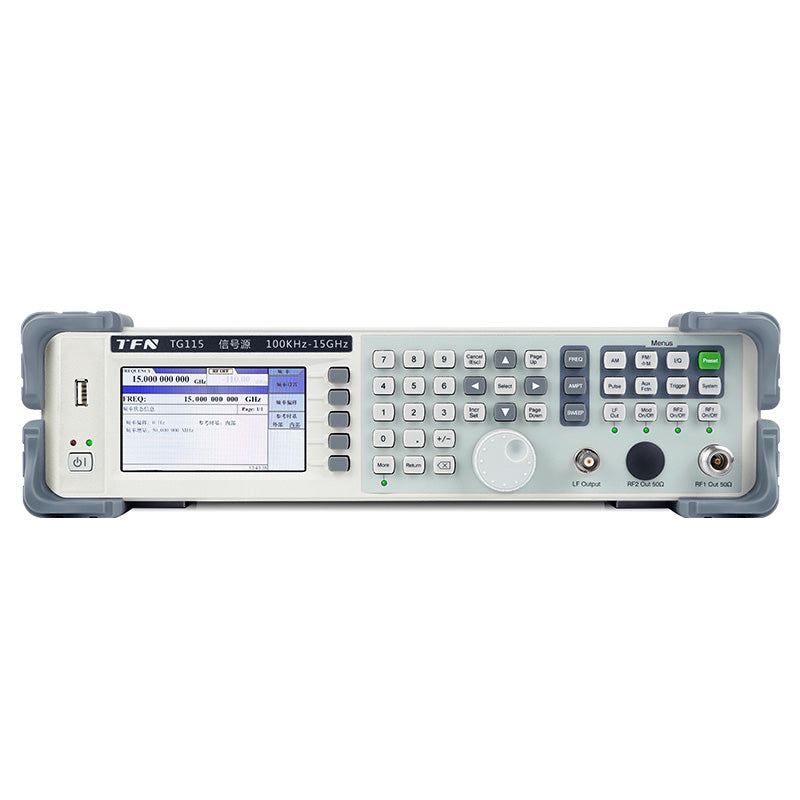

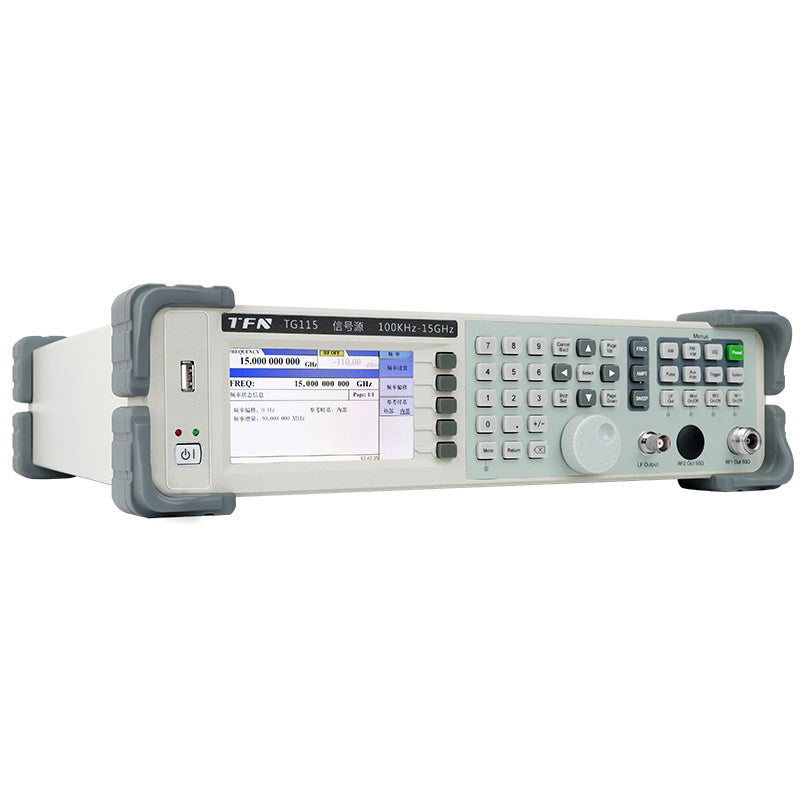

The TG115 microwave signal generator delivers exceptional signal purity and stability, supports various modulation types, along with built-in low-frequency signal outputs. which ensures reliable performance in both lab and production environments.
Product Features
✅ Wide Frequency Range & High Signal Purity
The TG115 covers 100 kHz to 15 GHz with outstanding phase noise performance (<-115 dBc/Hz at 10 kHz offset), ensuring clean and stable signal generation for precise RF and microwave measurements.
✅ Flexible Output Power with Optional Attenuation
With an output range of -20 dBm to +10 dBm and an optional programmable attenuator supporting up to 130 dB dynamic adjustment, the TG115 adapts to various signal level requirements, from sensitive receiver testing to high-power simulation.
✅ Comprehensive Modulation Capabilities
Supporting AM, FM, ΦM, and pulse modulation with up to 70 dB on/off ratio, the TG115 also provides internal modulation sources (sine, square, triangle, sawtooth) making it a versatile tool for communication system testing and signal simulation.
✅ User-Friendly Interface & Rich Connectivity

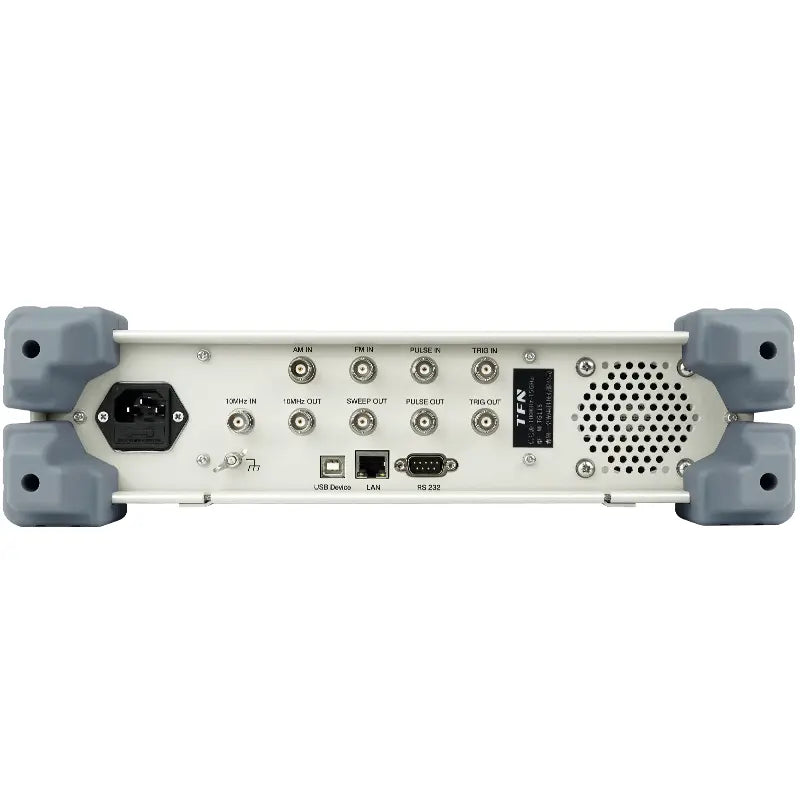

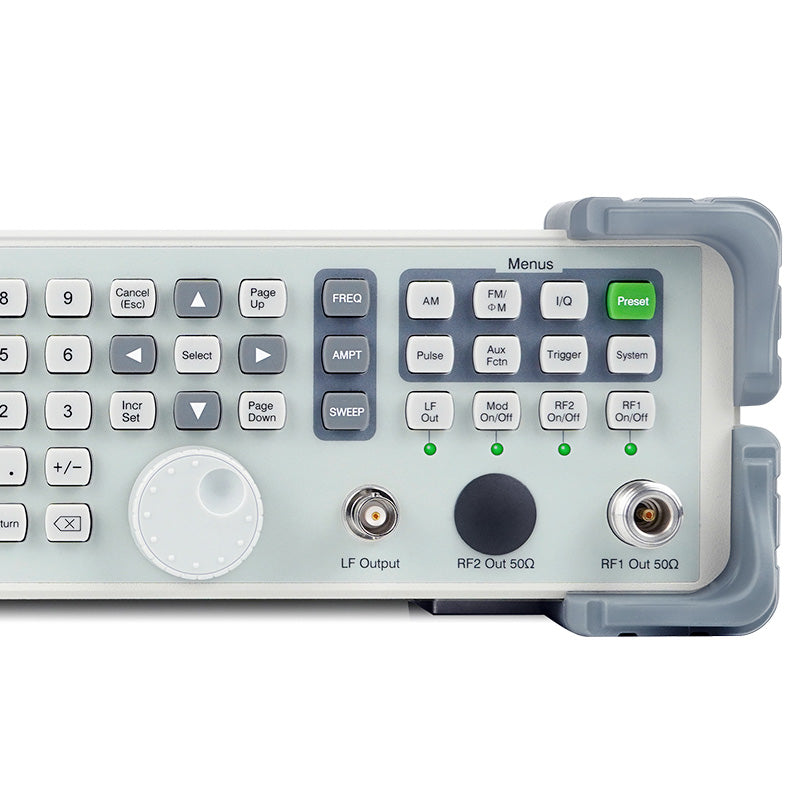

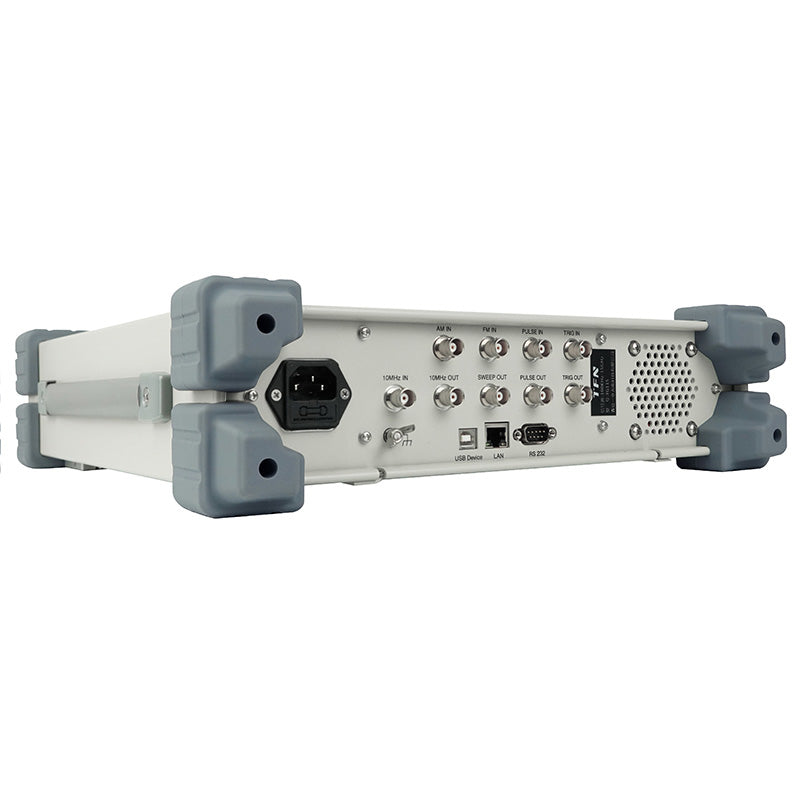

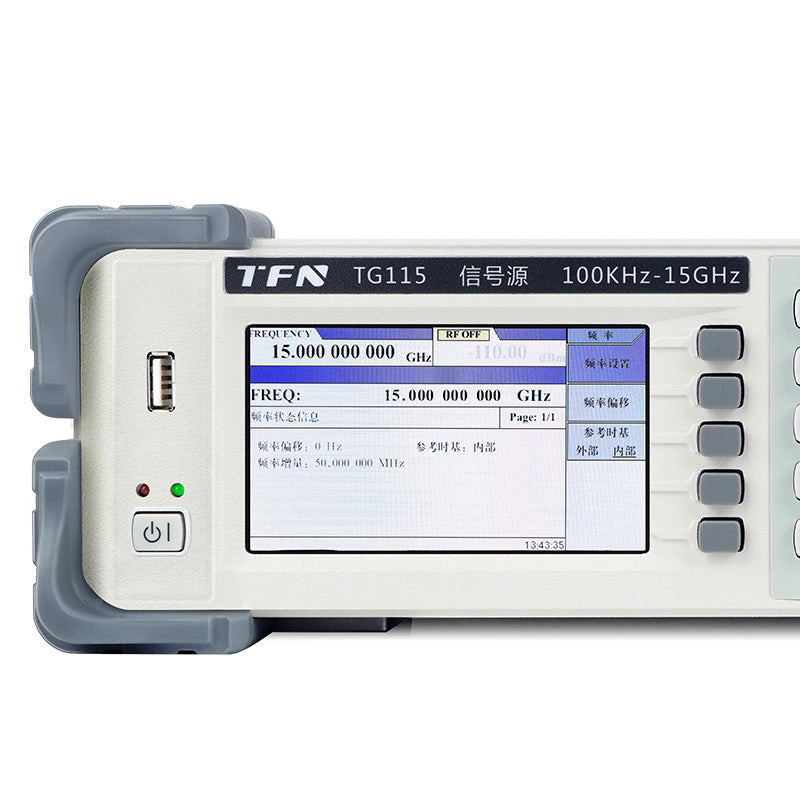

Featuring a LCD screen and multiple hardware interfaces (USB, LAN, RS-232, BNC, N-type), the TG115 allows easy manual operation and seamless integration into automated test systems.
✅ Remote Control & Programmable Integration
Equipped with standard SCPI commands and multiple communication interfaces, the TG115 supports remote operation and custom automation, ideal for production lines, R&D labs, and educational setups.
✅ Multiple scanning modes for more efficient testing
Scan mode : step/list scan, supports up to 65535 scan points.
Trigger mode : automatic , external, manual, adaptable to complex test processes.
Spec Sheet
| Model / Items | TG115 |
| Frequency Range | 100 kHz ~ 15 GHz |
| Phase Noise | < -115 dBc/Hz@10kHz |
| Output Power Range | -20 dBm ~ +10 dBm (expandable to -120 dBm) |
| Harmonic Suppression | ≤ -30 dBc |
| Modulation Method | AM/FM/ΦM/Pulse |
| Scan Points | Step: 2~65535, List: 2~16383 |
| Communication Interface | LAN, USB, RS-232 |
| Dimensions | 430 mm × 380 mm × 100 mm (2U) |
| Weight | ≤ 5 kg |
Where It's Used
- 5G/ 6G communication module R&D and verification
- Radar signal simulation and receiver testing
- Satellite communication system debugging
- Microwave and radio frequency experimental teaching in colleges and universities
- Military electronics and aerospace equipment testing
Package Content
- TG115 Microwave Signal Generator
- Power Cable (AC220V)
- CD (User Manual & Programming Guide)
Optional Accessories:
- Programmable Attenuator (TG115-PCA)
- Rack Mount Kit (TG115-RMK)
- High-Stability OCXO Option
- Low-Power Attenuation Kit
