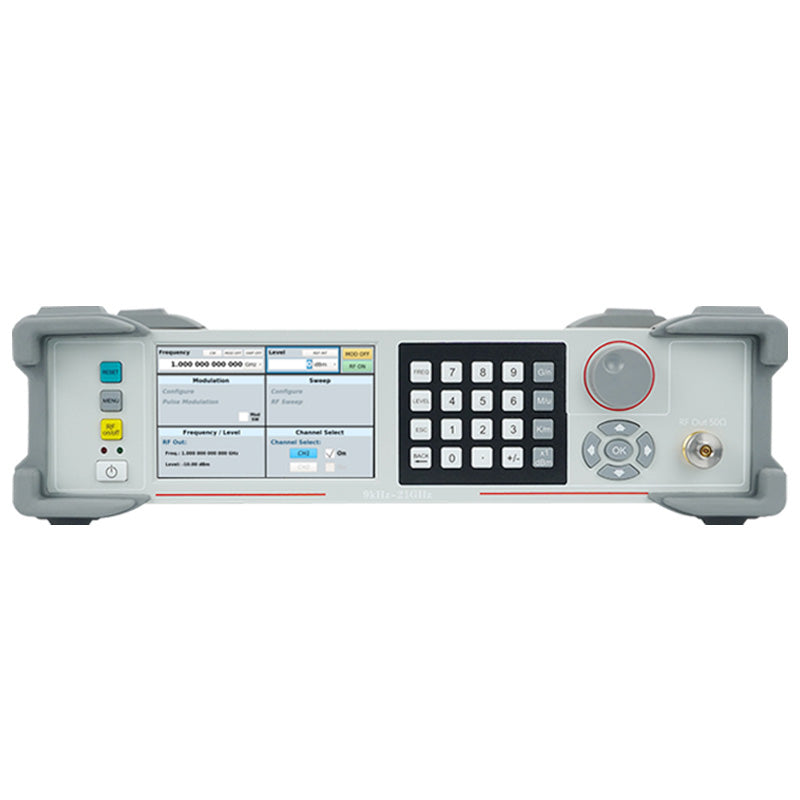

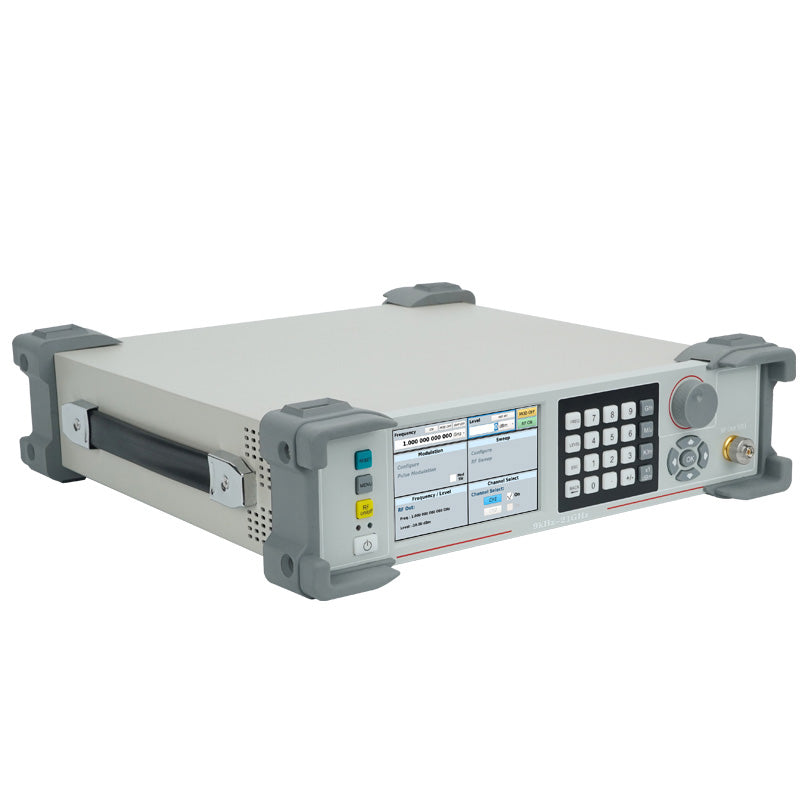

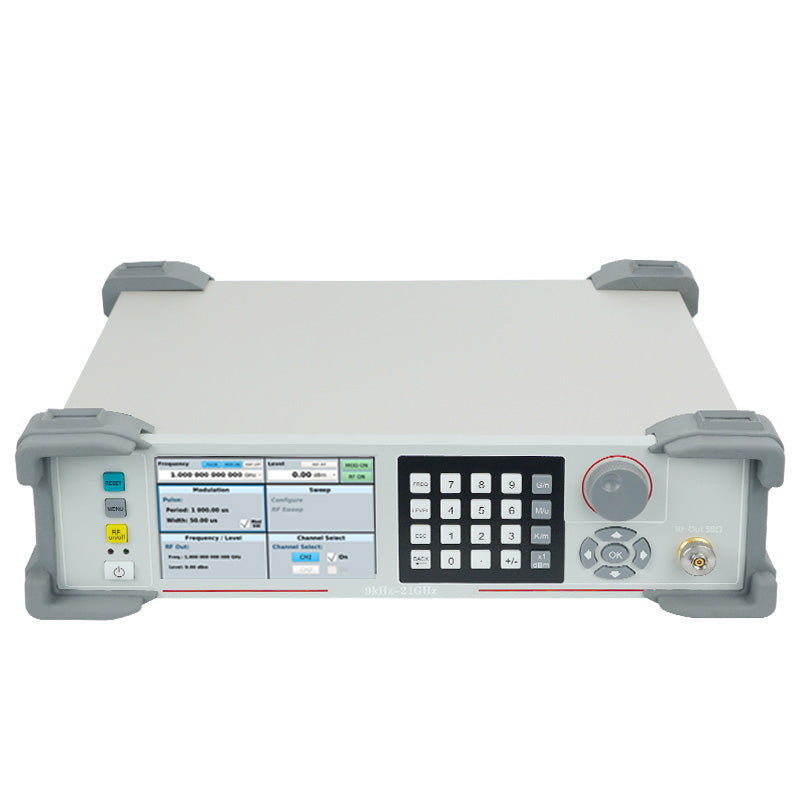

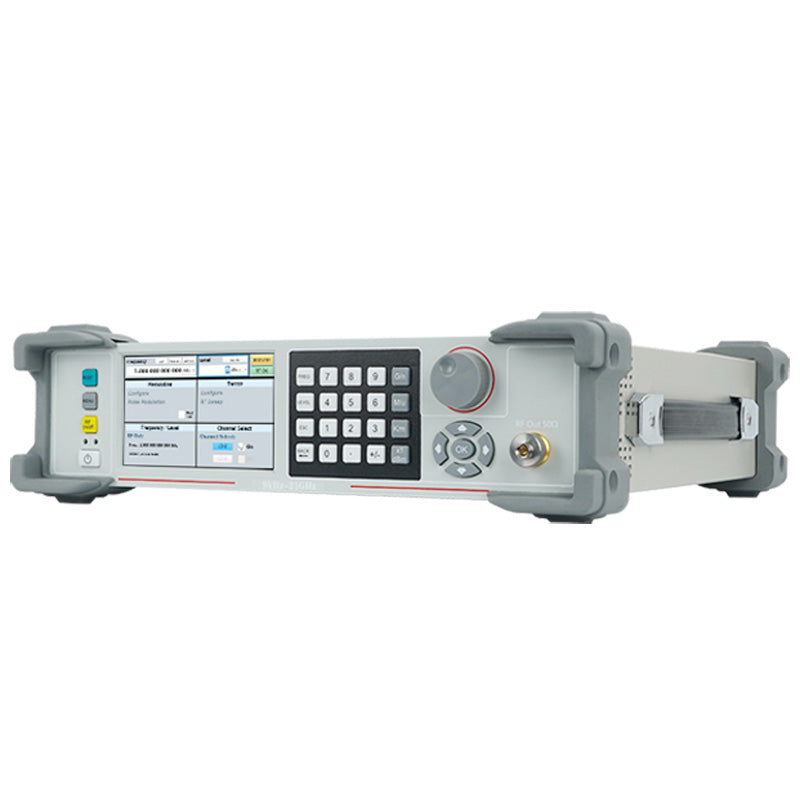

The TFN TG20A Microwave Signal Generator is a high-performance, compact instrument designed for demanding RF and microwave testing applications. It delivers exceptional signal purity, low phase noise, and high stability. The TG20A combines advanced modulation capabilities, fast switching, and a space-saving 2U design to meet the needs of modern test environments. Ideal for radar, satellite communications, quantum technology, 5G/6G R&D, and aerospace systems.
Product Features
✅ Ultra-Wide Frequency Coverage with High Resolution
The TG20A covers 9 kHz to 21 GHz with a fine frequency resolution of 0.001 Hz, enabling precise signal generation for high-frequency applications such as millimeter-wave communications, radar simulation, and satellite testing.
✅ High Dynamic Output Power Range
With an output power range from -120 dBm to +17 dBm, the TG20A supports both low-noise receiver testing and high-power stimulus scenarios, eliminating the need for external amplifiers or attenuators in most setups.
✅ Exceptional Signal Purity & Low Phase Noise
Featuring phase noise as low as -112 dBc/Hz at 10 kHz offset (10 GHz) and high spurious/harmonic suppression, the TG20A ensures clean, stable signals.
✅ Fast Switching & Advanced Pulse Modulation
The TG20A offers rapid frequency switching (as fast as 300 μs) and supports pulse modulation with a minimum pulse width of 100 ns and on/off ratio ≥65 dB, making it ideal for radar pulse simulation and time-critical testing.
✅ Compact Design & Full Remote Control

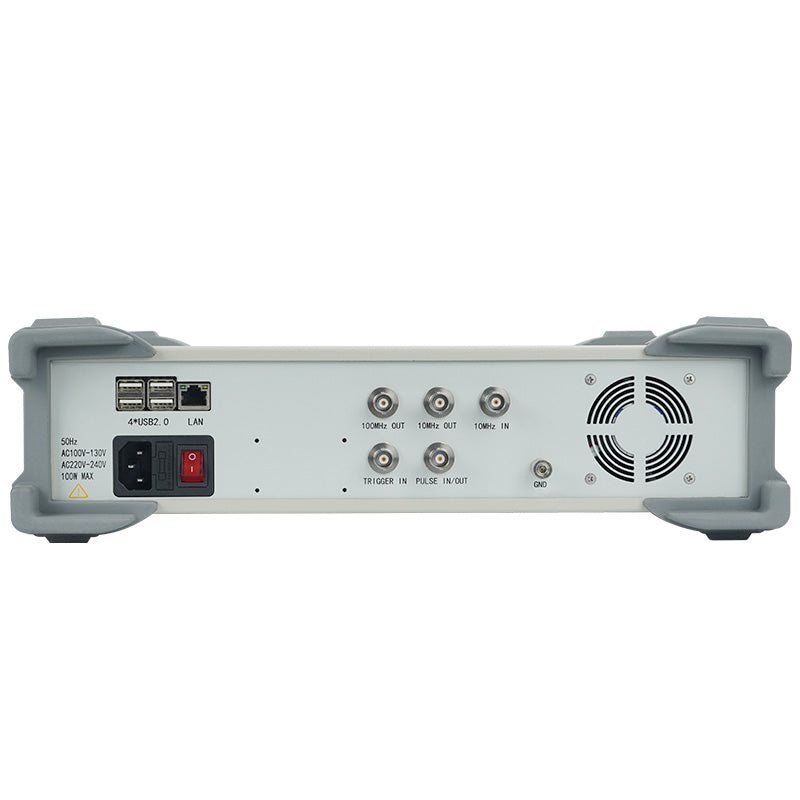

With a compact design and support for SCPI commands over USB/LAN, the TG20A easily integrates into automated test systems, benchtop setups, and rack environments, saving space while enabling seamless remote operation.
Spec Sheet
| Model / Items | TG20A |
| Frequency Range | 9 kHz ~ 21 GHz |
| Frequency Resolution | 0.001 Hz |
| Output Power Range | -120 dBm ~ +17 dBm |
| Power Resolution | 0.1 dB |
| Phase Noise | -112 dBc/Hz@10 kHz（10 GHz) |
| Harmonic Suppression | ≤ -50 dBc (10 GHz) |
| Spurious Suppression | ≤ -80 dBc (10 GHz) |
| Minimum Pulse Width | 100 ns |
| Scanning Mode | Step sweep |
| Dimensions | 360 mm × 360 mm × 89 mm |
| Weight | 10 kg |
Where It's Used
- Radar system development and receiver testing
- Quantum communication system signal simulation
- 5G/millimeter wave communication module verification
- Aerospace avionics equipment debugging
- High-frequency experiments in universities and research institutes
Package Content
- TFN TG20A Microwave Signal Generator
- Power Cable
- User Manual & Programming Guide (Digital/Print)
Optional Accessories
- Rack Mount Kit
- High-Stability OCXO Option
- Additional RF Cables & Adapters
- Carrying Case
